S&P STXD UL762 Upblast Centrifugal Direct Drive Roof Exhausters

S&P STXD UL762 Upblast Centrifugal Direct Drive Roof Exhausters

Isolation of the motor from the air stream and the high velocity vertical (roof) or horizontal (wall) air discharge make the Model STXD ideally suited for the removal of dirty, contaminated and/ or high temperature air from processes and buildings. Typical applications include restaurant hoods and similar kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.  UL-762 listed for restaurant applications.

Pricing includes assembled fan, motor prewired, UL-762 listing, label, disconnect switch (mounted and wired).  Standard motors are open drip-proof either 115/1/60 or 230/1/60.

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
STXD10RHULMM1AS S&P STXD10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1075 RPM. 1 Day. In stock. $1006.80
STXD10RHULPH1AS S&P STXD10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 115/1/60 motor. 1625 RPM. 2-3 Days $1045.70
STXD10RHULMM1CS S&P STXD10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 230/1/60 motor. 1075 RPM. 7-8 Weeks $858.70
STXD10RHULPH1CS S&P STXD10 centrifugal roof exhauster. UL762 Listed (restaurants). 1/3 Hp, 230/1/60 motor. 1625 RPM. 7-8 Weeks $1063.60
STXD12RHULMM1AS S&P STXD12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1075 RPM. 2-3 Days $1090.10
STXD12RHULQH1AS S&P STXD12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1625 RPM. 2-3 Days $1136.90
STXD12RHULMM1CS S&P STXD12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 230/1/60 motor. 1075 RPM. 7-8 Weeks $1110.40
STXD12RHULQH1CS S&P STXD12 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 230/1/60 motor. 1625 RPM. 7-8 Weeks $1157.90
STXD14RHULMM1AS S&P STXD14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 115/1/60 motor. 1075 RPM. 2-3 Days $1062.90
STXD14RHULMM1CS S&P STXD14 centrifugal roof exhauster. UL762 Listed (restaurants). 1/4 Hp, 230/1/60 motor. 1075 RPM. 7-8 Weeks $1054.30
STXD15RHULQM1AS S&P STXD15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1140 RPM. 2-3 Days $1219.50
STXD15RHULQM1CS S&P STXD15 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 230/1/60 motor. 1140 RPM. 7-8 Weeks $1244.40
STXD16RHULQM1AS S&P STXD16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 115/1/60 motor. 1140 RPM. 2-3 Days $1277.10
STXD16RHULQM1CS S&P STXD16 centrifugal roof exhauster. UL762 Listed (restaurants). 1/2 Hp, 230/1/60 motor. 1140 RPM. 7-8 Weeks $1304.40
711216 S&P 12 inch high roof mounting curb. 16-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $256.40
711218 S&P 12 inch high roof mounting curb. 18-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $297.70
711222 S&P 12 inch high roof mounting curb. 22-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $315.60
722416V S&P 24 inch high VENTED roof mounting curb. 16-1/2 inch sq. 2-3 Days $420.80
722418V S&P 24 inch high VENTED roof mounting curb. 18-1/2 inch sq. 2-3 Days $422.30
721822V S&P 18 inch high VENTED roof mounting curb. 22-1/2 inch sq. 2-3 Days $331.90
411012 S&P 12" X 12" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $41.30
411014 S&P 14" X 14" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $54.50
411018 S&P 18" X 18" series 411 automatic exhaust damper. Max velocity of 2000 FPM. 2-3 Days $60.80
411611 S&P damper motor option. Ships loose. 115/230 VAC 60 Hz power open, spring return motor. 2-3 Days $219.70
2727.1 S&P speed controller. 5 Amp, up to 1/3 hp, 120V. 2-3 Days $63.90
2828.1 S&P HD speed controller. 10 Amp, up to 1/2 HP, 120V. 2-3 Days $142.60
3232.1 S&P speed controller. 6 Amp, up to 1/3 HP, 230V. 2-3 Days $128.60
CCA1816 S&P curb cap adaptor. Replace DB with SDB unit. 17-3/4 ID X 16 in OD. 2-3 Days $130.10
CCA2024 S&P curb cap adaptor. Replace DB with SDB unit. 19-3/4 ID X 24 in OD. 2-3 Days $136.40
400557 S&P wall mount adapter. STXB/STXD 12-14. 2-3 Days $69.40
400559 S&P wall mount adapter. STXB/STXD 15-16. 2-3 Days $84.20
400248 S&P bird screen kit. STXB/STXD 6-10. 2-3 Days $46.80
400249 S&P bird screen kit. STXB/STXD 12-14. 2-3 Days $50.60
400250 S&P bird screen kit. STXB/STXD 15-16. 2-3 Days $55.30
400252 S&P hinged base kit. 2-3 Days $81.80
90005891-A S&P metal grease container/box. 2-3 Days $110.60
708971 S&P grease grabber. For roof mounting only. 2-3 Days $106.80
708971W S&P grease grabber. For sidewall mounting only. 2-3 Days $106.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

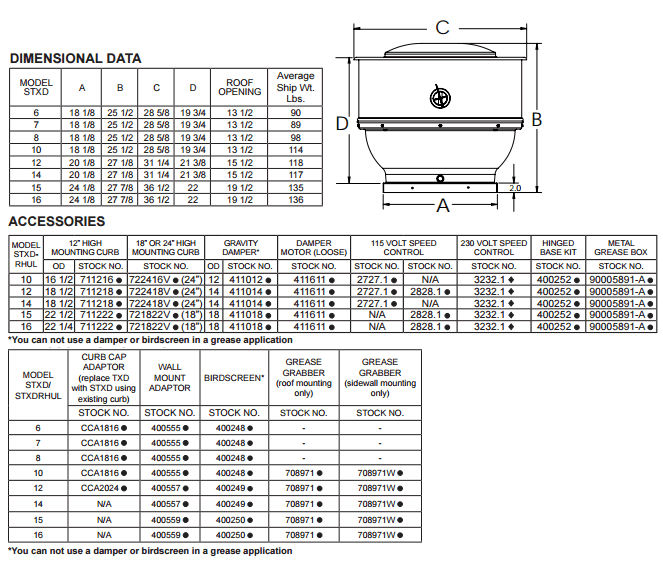

S&P STXD Dimensions

S&P STXD Specifications
