Fantech 2SHE Series Direct Drive Shutter Fans

Fantech 2SHE Series Direct Drive Shutter Fans

Fantech 2SHE shutter mounted exhaust fans are widely used for ventilating warehouses, stores, factories, workshops, greenhouses and farm buildings. Shutter frames with prepunched mounting holes allow for easy installation.

  • All ventilators are UL 705 Standards listed
  • Heavy duty guards have gray polyester coating to resist corrosion
  • OSHA compliant guards
  • Totally enclosed motors
  • Speed controllable
  • Shipped ready to install
  • Blades are manufactured from aluminum
model description usually ships price QTY
2SHE0721 Fantech 2SHE series direct drive shutter fan. 7". 1/30 Hp, 120 VAC, 1 Ph, TEFC Motor. 140 CFM nominal. 4-5 Days $152.00
2SHE1021 Fantech 2SHE series direct drive shutter fan. 10". 1/30 Hp, 120 VAC, 1 Ph, TEFC Motor. 585 CFM nominal. 4-5 Days $162.80
2SHE1221 Fantech 2SHE series direct drive shutter fan. 12". 1/30 Hp, 120 VAC, 1 Ph, TEFC Motor. 800 CFM nominal. 4-5 Days $170.10
2SHE1621 Fantech 2SHE series direct drive shutter fan. 16". 1/20 Hp, 120 VAC, 1 Ph, TEFC Motor. 1095 CFM nominal. 4-5 Days $224.30
2SHE1871 Fantech 2SHE series direct drive shutter fan. 18". 1/15 Hp, 120 VAC, 1 Ph, TEFC Motor. 1860 CFM nominal. 4-5 Days $300.30
2SHE20B1W Fantech 2SHE series direct drive shutter fan. 20". 1/4 Hp, 120 VAC, 1 Ph, TEFC Motor. 2830 CFM nominal. 4-5 Days $401.60
2SHE24B1W Fantech 2SHE series direct drive shutter fan. 24". 1/4 Hp, 120 VAC, 1 Ph, TEFC Motor. 3240 CFM nominal. 4-5 Days $441.40
2SHE30C1 Fantech 2SHE series direct drive shutter fan. 30". 1/3 Hp, 120 VAC, 1 Ph, TEFC Motor. 6075 CFM nominal. 4-5 Days $575.30
2SHE36D1 Fantech 2SHE series direct drive shutter fan. 36". 1/2 Hp, 120 VAC, 1 Ph, TEFC Motor. 8225 CFM nominal. 4-5 Days $622.40
1ACC24WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 24. 4-5 Days $230.90
1ACC30WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 30. 4-5 Days $289.50
1ACC36WH Fantech weatherhood. Galvanized. Exhaust or supply fans. For fan size 36. 4-5 Days $338.70
5ACC01MS Fantech motor disconnect. 2 Pole. 4-5 Days $131.70
FAT 10 Fantech attic thermostat. 80-130 Deg. F., 115 VAC, 10 amp. Fantech part #411233 1 Day. In-stock $53.20
FH 20 Fantech Humidistat, wall mount, 12 - 115VAC, 7.5 amp, normally-open contacts, 20-80% adjustable. Contacts close on rise in humidity. [J10-810] 1 Day. In-stock $34.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

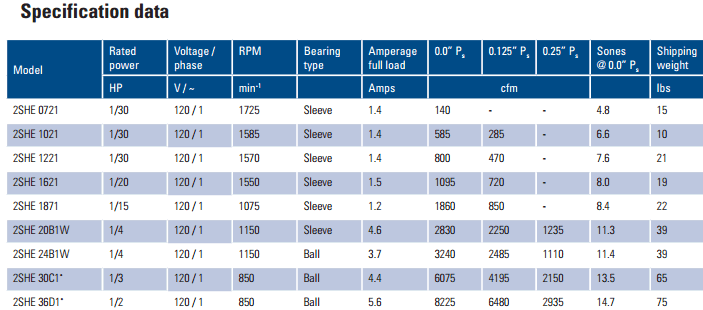

fantech 2SHE series performance

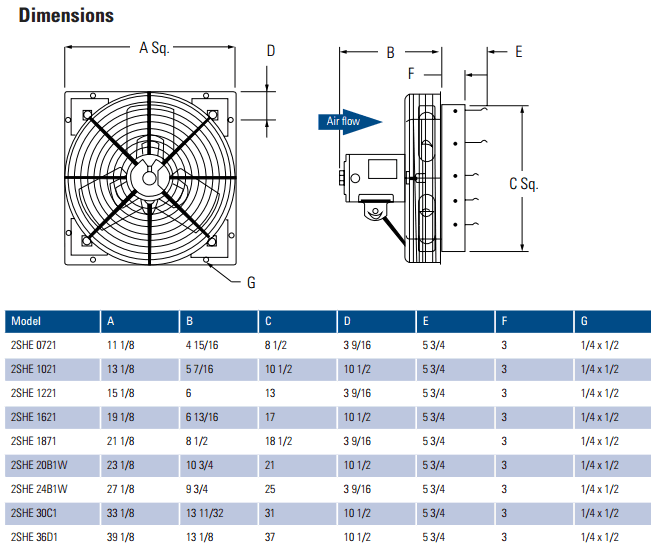

fantech 2SHE series sizing

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What controller do I need for this rascal or does it even need one ?
A:   You can hardwire the fan to an on/off switch or use a speed controller. Optional Speed controllers: 5 amp model 5ACC05SC, 6 amp model 5ACC06AC, and 10 amp model 5ACC1OSC.

       Asked on 2022-12-06 by Shannon
#2 Q:   How do I ground this? All I see is a black and white wire?
A:   Typically, Fantech recommends grounding by using a separate ground wire connected to the bare metal of the motor frame. See install manual.

       Asked on 2020-02-20 by layton
#3 Q:   Are the fan blades of the 2SHE fans provided with a protective coating??
A:   No, these are typically raw aluminum.

       Asked on 2018-03-16 by ZDH
