S&P LCS Sidewall Propeller Supply Fans - 3 PHASE

S&P LCS Sidewall Propeller Supply Fans - 3 PHASE

Model LCS (supply) are high capacity belt driven propeller fans. Their primary application is the supply of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry and greenhouses.  3 PHASE MOTOR MODELS.

List price includes assembled fan, motor & drives mounted, UL-705 listing label. Standard three phase motors are 208-230/460. Wall housing packs are sold separate and must be purchased with the fan (add wall housing price to price of the bare fan).

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
LCS20MH3S S&P LCS20 sidewall BD propeller supply fan. 1/4 Hp, 208-230/460/3/60 motor. 955 RPM. Call/Email for leadtime $905.50
LCS20PH3S S&P LCS20 sidewall BD propeller supply fan. 1/3 Hp, 208-230/460/3/60 motor. 1050 RPM. Call/Email for leadtime $890.50
LCS20QH3S S&P LCS20 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 1180 RPM. Call/Email for leadtime $974.20
LCS20RH3S S&P LCS20 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 1350 RPM. Call/Email for leadtime $914.20
LCS24MH3S S&P LCS24 sidewall BD propeller supply fan. 1/4 Hp, 208-230/460/3/60 motor. 600 RPM. Call/Email for leadtime $982.90
LCS24PH3S S&P LCS24 sidewall BD propeller supply fan. 1/3 Hp, 208-230/460/3/60 motor. 660 RPM. Call/Email for leadtime $970.30
LCS24QH3S S&P LCS24 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 670 RPM. Call/Email for leadtime $1049.20
LCS24RH3S S&P LCS24 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 875 RPM. Call/Email for leadtime $1067.40
LCS24SH3S S&P LCS24 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 950 RPM. Call/Email for leadtime $1227.60
LCS24TH3S S&P LCS24 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 1100 RPM. Call/Email for leadtime $1272.60
LCS30MH3S S&P LCS30 sidewall BD propeller supply fan. 1/4 Hp, 208-230/460/3/60 motor. 450 RPM. Call/Email for leadtime $1082.40
LCS30PH3S S&P LCS30 sidewall BD propeller supply fan. 1/3 Hp, 208-230/460/3/60 motor. 495 RPM. Call/Email for leadtime $1066.60
LCS30QH3S S&P LCS30 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 565 RPM. Call/Email for leadtime $1123.40
LCS30RH3S S&P LCS30 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 650 RPM. Call/Email for leadtime $1144.70
LCS30SH3S S&P LCS30 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 715 RPM. Call/Email for leadtime $1307.40
LCS30TH3S S&P LCS30 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 815 RPM. Call/Email for leadtime $1340.50
LCS36PH3S S&P LCS36 sidewall BD propeller supply fan. 1/3 Hp, 208-230/460/3/60 motor. 390 RPM. Call/Email for leadtime $1070.50
LCS36QH3S S&P LCS36 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 440 RPM. Call/Email for leadtime $1136.10
LCS36RH3S S&P LCS36 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 505 RPM. Call/Email for leadtime $1166.10
LCS36SH3S S&P LCS36 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 555 RPM. Call/Email for leadtime $1309.70
LCS36TH3S S&P LCS36 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 635 RPM. Call/Email for leadtime $1350.00
LCS36VH3S S&P LCS36 sidewall BD propeller supply fan. 2 Hp, 208-230/460/3/60 motor. 695 RPM. Call/Email for leadtime $1278.20
LCS42PH3S S&P LCS42 sidewall BD propeller supply fan. 1/3 Hp, 208-230/460/3/60 motor. 305 RPM. Call/Email for leadtime $1314.50
LCS42QH3S S&P LCS42 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 345 RPM. Call/Email for leadtime $1375.30
LCS42RH3S S&P LCS42 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 395 RPM. Call/Email for leadtime $1369.70
LCS42SH3S S&P LCS42 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 435 RPM. Call/Email for leadtime $1507.10
LCS42TH3S S&P LCS42 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 500 RPM. Call/Email for leadtime $1550.50
LCS42VH3S S&P LCS42 sidewall BD propeller supply fan. 2 Hp, 208-230/460/3/60 motor. 550 RPM. Call/Email for leadtime $1470.00
LCS48QH3S S&P LCS48 sidewall BD propeller supply fan. 1/2 Hp, 208-230/460/3/60 motor. 290 RPM. Call/Email for leadtime $1451.10
LCS48RH3S S&P LCS48 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 330 RPM. Call/Email for leadtime $1458.20
LCS48SH3S S&P LCS48 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 365 RPM. Call/Email for leadtime $1576.60
LCS48TH3S S&P LCS48 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 415 RPM. Call/Email for leadtime $1612.90
LCS48VH3S S&P LCS48 sidewall BD propeller supply fan. 2 Hp, 208-230/460/3/60 motor. 455 RPM. Call/Email for leadtime $1554.50
LCS54RH3S S&P LCS54 sidewall BD propeller supply fan. 3/4 Hp, 208-230/460/3/60 motor. 270 RPM. Call/Email for leadtime $2018.70
LCS54SH3S S&P LCS54 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 295 RPM. Call/Email for leadtime $2175.80
LCS54TH3S S&P LCS54 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 340 RPM. Call/Email for leadtime $2188.40
LCS54VH3S S&P LCS54 sidewall BD propeller supply fan. 2 Hp, 208-230/460/3/60 motor. 370 RPM. Call/Email for leadtime $2130.80
LCS54WH3S S&P LCS54 sidewall BD propeller supply fan. 3 Hp, 208-230/460/3/60 motor. 425 RPM. Call/Email for leadtime $2375.50
LCS60SH3S S&P LCS60 sidewall BD propeller supply fan. 1 Hp, 208-230/460/3/60 motor. 265 RPM. Call/Email for leadtime $2271.30
LCS60TH3S S&P LCS60 sidewall BD propeller supply fan. 1.5 Hp, 208-230/460/3/60 motor. 300 RPM. Call/Email for leadtime $2303.70
LCS60VH3S S&P LCS60 sidewall BD propeller supply fan. 2 Hp, 208-230/460/3/60 motor. 335 RPM. Call/Email for leadtime $2244.50
LCS60WH3S S&P LCS60 sidewall BD propeller supply fan. 3 Hp, 208-230/460/3/60 motor. 380 RPM. Call/Email for leadtime $2487.60
WHPLCS20 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 20 size. 5-6 Weeks $502.10
WHPLCS24 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 24 size. 5-6 Weeks $569.20
WHPLCS30 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 30 size. 5-6 Weeks $656.10
WHPLCS36 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 36 size. 5-6 Weeks $828.20
WHPLCS42 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 42 size. 5-6 Weeks $1035.80
WHPLCS48 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 48 size. 5-6 Weeks $1180.30
WHPLCS54 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 54 size. 5-6 Weeks $1785.00
WHPLCS60 S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, gravity damper, and guard. 60 size. 5-6 Weeks $1946.80
WHPLCS20M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 20 size. 5-6 Weeks $871.60
WHPLCS24M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 24 size. 5-6 Weeks $938.70
WHPLCS30M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 30 size. 5-6 Weeks $1022.40
WHPLCS36M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 36 size. 5-6 Weeks $1316.80
WHPLCS42M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 42 size. 5-6 Weeks $1521.30
WHPLCS48M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 48 size. 5-6 Weeks $1665.00
WHPLCS54M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 54 size. 5-6 Weeks $2272.90
WHPLCS60M S&P wall housing pack (assembled). For SUPPLY FANS. Includes wall sleeve, MOTORIZED damper, and guard. 60 size. 5-6 Weeks $2435.50
S3GA20RF S&P gravity supply air damper. Counterbalanced. 20X20 inch. 2-3 Days $199.70
S3GA26RF S&P gravity supply air damper. Counterbalanced. 26X26 inch. 2-3 Days $223.40
S3GA32RF S&P gravity supply air damper. Counterbalanced. 32X32 inch. 2-3 Days $271.60
S3GA38RF S&P gravity supply air damper. Counterbalanced. 38X38 inch. 2-3 Days $367.90
S3GA44RF S&P gravity supply air damper. Counterbalanced. 44x44 inch. 2-3 Days $508.40
S3GA50RF S&P gravity supply air damper. Counterbalanced. 50X50 inch. 2-3 Days $585.00
S3GA56RF S&P gravity supply air damper. Counterbalanced. 56X56 inch. 2 Weeks $749.20
S3GA62RF S&P gravity supply air damper. Counterbalanced. 62X62 inch. 2 Weeks $892.90
MP2781 S&P shutter damper motor. Ships loose. 2-3 Days $244.70
MA220 S&P damper motor. Ships loose. 2-3 Days $320.50
7520.8.20KDS S&P rainhood for supply fans. 20 inch. KD. 2-3 Days $360.00
7520.8.24KDS S&P rainhood for supply fans. 24 inch. KD. 2-3 Days $431.80
7520.8.30KDS S&P rainhood for supply fans. 30 inch. KD. 2-3 Days $620.50
7520.8.36KDS S&P rainhood for supply fans. 36 inch. KD. 2-3 Days $761.80
7520.8.42KDS S&P rainhood for supply fans. 42 inch. KD. 2-3 Days $850.30
7520.8.48KDS S&P rainhood for supply fans. 48 inch. KD. 2-3 Days $953.70
7520.8.54KDS S&P rainhood for supply fans. 54 inch. KD. 2 Weeks $1226.10
7520.8.60KDS S&P rainhood for supply fans. 60 inch. KD. 2 Weeks $1546.60
7521.5.20RHS S&P rainhood birdscreen for supply fans. 20 inch. 2-3 Days $120.80
7521.5.24RHS S&P rainhood birdscreen for supply fans. 24 inch. 2-3 Days $138.20
7521.5.30RHS S&P rainhood birdscreen for supply fans. 30 inch. 2-3 Days $149.20
7521.5.36RHS S&P rainhood birdscreen for supply fans. 36 inch. 2-3 Days $157.10
7521.5.42RHS S&P rainhood birdscreen for supply fans. 42 inch. 2-3 Days $157.90
7521.5.48RHS S&P rainhood birdscreen for supply fans. 48 inch. 2-3 Days $159.50
7521.5.60RHS S&P rainhood birdscreen for supply fans. 60 inch. 2 Weeks $388.40
7521.5.54RHS S&P rainhood birdscreen for supply fans. 54 inch. 2 Weeks $386.80
2503.20 S&P electrical disconnect switch. 208-230/460, 3ph. 10 Hp max. Open NEMA 1. 2-3 Days $113.70
90012002R S&P electrical disconnect switch. 208-230/460, 3ph. 10 Hp max. Raintight NEMA 3. 2-3 Days $146.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

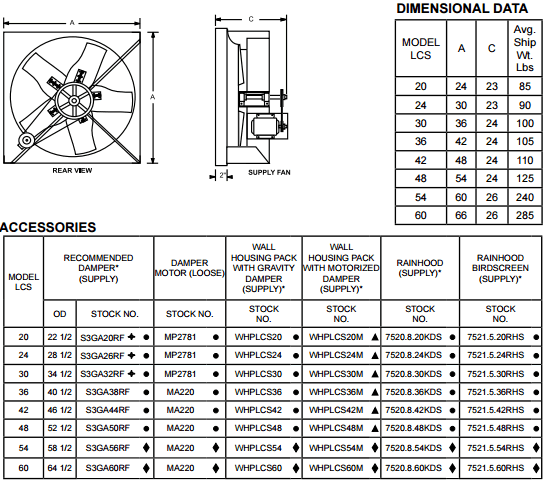

S&P LCS Dimensions

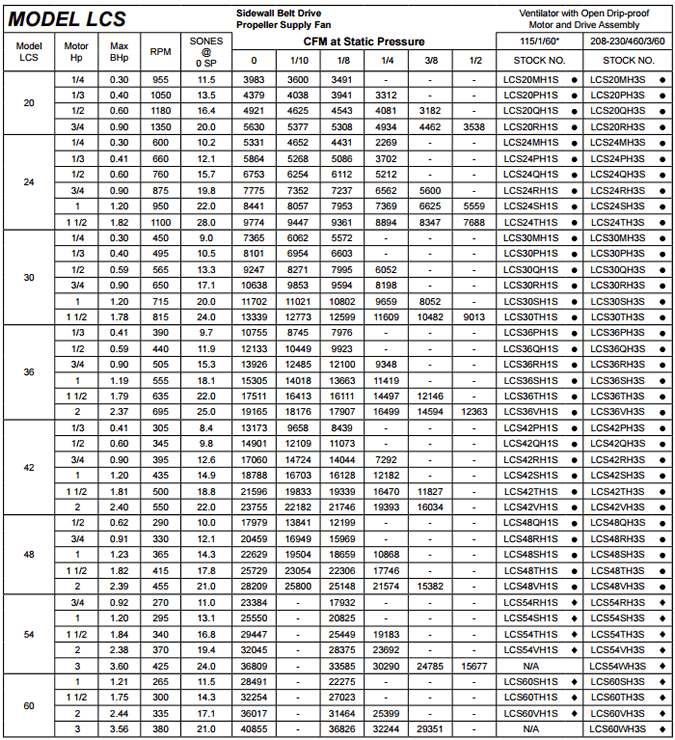

S&P LCS Specifications
