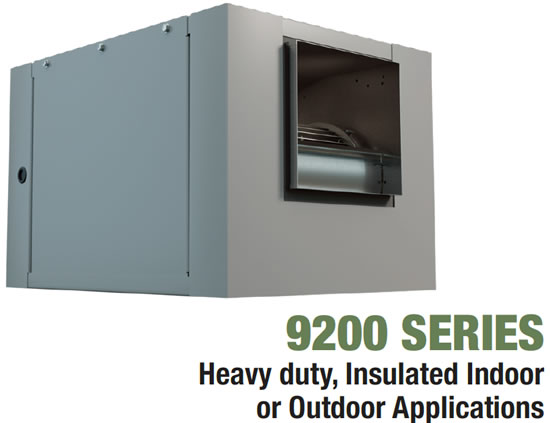

Canarm Leader 9200 Series Forward Curved Inline Duct Blowers

Canarm Leader 9200 Series Forward Curved Inline Duct Blowers

  • Wheel Diameters: 7" through 20"
  • CFM: Approximately 500 to 12,500 CFM in a single blower (twins available).
  • Static Pressure: Usage to about 3” static pressure is common, although allowable range is higher.
  • Constructed from cold rolled steel, with green baked on powder coat.
  • Forward Curved blowers operate at low RPM for low noise levels.
  • Saddle type motor mounting platform provides extended belt tension adjustment range on all models.
  • For the quietest operational needs we offer optional internal spring isolation of the blower/motor from the housing thus greatly reducing radiated cabinet noise.
  • Twin units (two duct blowers on a common shaft) offer a wide but not tall solution for situations where vertical space is limited.

CALL US AT 877-711-4822 FOR MOTOR AND ADDITIONAL ACCESSORY PRICING

model description usually ships price QTY
9209**9020033 Canarm 9200 series HD inline duct blower. Motor and drives not included. With motor platform. 3-5 Days $676.20
9210**9020034 Canarm 9200 series HD inline duct blower. Motor and drives not included. With motor platform. 3-5 Days $761.40
9212**9020035 Canarm 9200 series HD inline duct blower. Motor and drives not included. With motor plate. 3-5 Days $1154.00
9215**9020036 Canarm 9200 series HD inline duct blower. Motor and drives not included. With motor plate. 3-5 Days $1311.50
9218**9020037 Canarm 9200 series HD inline duct blower. Motor and drives not included. With motor platform. 3-5 Days $1977.60
9220**9020038 Canarm 9200 series HD inline duct blower. Motor and drives not included. NO motor platform. 3-5 Days $2682.20
9209-2**9020039 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. With motor platform. 4 Weeks $1779.90
9210-2**9020040 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. With motor platform. 4 Weeks $1961.10
9212-2**9020041 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. With motor plate. 4 Weeks $2406.90
9215-2**9020042 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. With motor plate. 4 Weeks $2894.80
9218-2**9020043 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. With motor platform. 4 Weeks $4441.40
9220-2**9020044 Canarm 9200 series HD inline duct TWIN blower. Motor and drives not included. NO motor platform. 4 Weeks $5619.10
9200003 Canarm motor platform. 1-15 HP. 1-2 Weeks $251.60
9200008 Canarm motor platform. 20-50 HP. 1-2 Weeks $288.40
F209A**9020002 Canarm insulated painted FILTER SECTION. For 209, 9209, 9209-VIB blowers. 1-2 Weeks $125.50
F210A**9020003 Canarm insulated painted FILTER SECTION. For 210, 9210, 9210-VIB blowers. 1-2 Weeks $136.80
F212A**9020004 Canarm insulated painted FILTER SECTION. For 212, 9212, 9212-VIB blowers. 1-2 Weeks $158.10
F215A**9020005 Canarm insulated painted FILTER SECTION. For 215, 9215, 9215-VIB blowers. 1-2 Weeks $187.70
F218A**9020006 Canarm insulated painted FILTER SECTION. For 218, 9218, 9218-VIB blowers. 1-2 Weeks $229.70
F9220A**9020052 Canarm insulated painted FILTER SECTION. For 9220, 9220-VIB blowers. 1-2 Weeks $646.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader blowers

canarm leader blowers

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
