TRUaire 103M Series Stamped 3 Way Sidewall and Ceiling Registers

103M Features :

  • Stamped louver in 3-way airflow pattern
  • 1/2" spaced with 45 deg blade angle
  • Single lever operated multi-louver shutter
  • Counter-sunk screw holes with 2" screws provided
  • Finished with white powder coating

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is larger.

model description usually ships price QTY
103M 06X04 6x4 inch (WxH - 7.75x5.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $7.60
103M 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $8.80
103M 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $8.40
103M 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $8.90
103M 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $9.70
103M 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $8.60
103M 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $9.20
103M 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $10.50
103M 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $13.70
103M 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $8.90
103M 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $10.10
103M 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $11.60
103M 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $14.70
103M 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $16.90
103M 14X04 14x4 inch (WxH - 15.75x5.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $9.60
103M 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $10.50
103M 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $12.20
103M 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $15.50
103M 14X12 14x12 inch (WxH - 15.75x13.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $20.10
103M 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $21.60
103M 16X06 16x6 inch (WxH - 17.75x7.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $12.90
103M 16X08 16x8 inch (WxH - 17.75x9.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $14.50
103M 16X10 16x10 inch (WxH - 17.75x11.75 inch overall) TRUaire 103M series 3-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In Stock $16.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

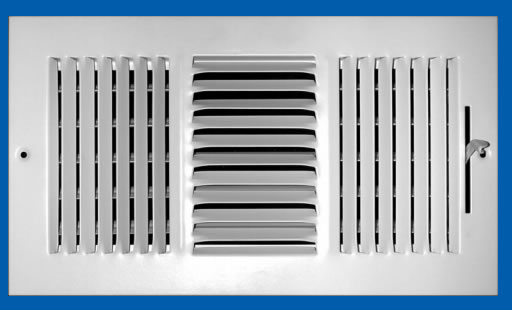

103M

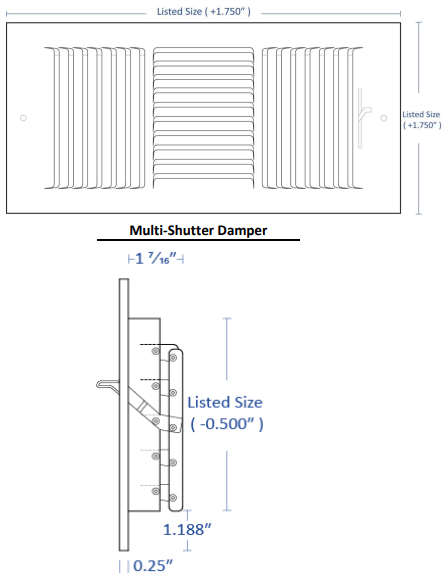

103M dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Duct opening is 10.5x6.5 - what size should I order?
A:   Without going custom, you would get 10x6 as overall size will be 11.75x7.75 which will cover the hole. May have to get creative on the sides where the screws are to make sure they hit something but should work.

       Asked on 2020-01-16 by Kristen
#2 Q:   Do these shut completely to block airflow in to the room?
A:   These do close off completely but there are no edge seals on the blades so some air can leak through.

       Asked on 2018-11-25 by Dixie
#3 Q:   I am looking for an 8 X 4 register that has screws that are 8.5 apart (to fit the existing duct). Can you tell me how far apart the screws are on your 8x4 register?
A:   The 8x4 register has a hole spacing of 8.875 inches.

       Asked on 2018-10-20 by JH
#4 Q:   How do I measure to get the right fit
A:   Measure the size of the hole/opening. If you measure 12x12 then get a 12x12 list size grille. A 12x12 LIST SIZE grille frame will slide into a 12x12 drywall opening. The actual outer size of the grille frame is larger. CALL US IF YOU ARE NOT SURE. 877-711-4822

       Asked on 2016-12-11 by Luis
#5 Q:   I have a 3 way vent grill which fits into a ceiling hole that is exactly 9 1/2 and 7 1/2. The exterior measurements are actually a little more than 9 1/2 and a little more than 11 1/2. Which model of vent would I need?
A:   These Truaire units are actually 1/2 smaller than the listed size where it goes into the wall, so the 103M would be a fine choice.

       Asked on 2013-11-24 by Villegas
#6 Q:   I have a vent with inside measurement of 5½ and 13½. That is the ceiling hole would have to be that size. The louver handle is broken off. What size vent would I need and would it screw into the frame already installed?
A:   In this series a 14x6 would fit.

       Asked on 2013-11-10 by Jerry M
