AG20 B Bar Linear Grilles In Brushed Satin
Brand Logo

Architectural Grille AG20 B Bar Linear Grilles In Brushed Satin

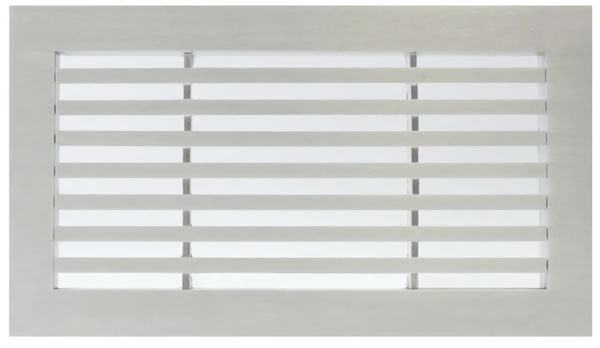

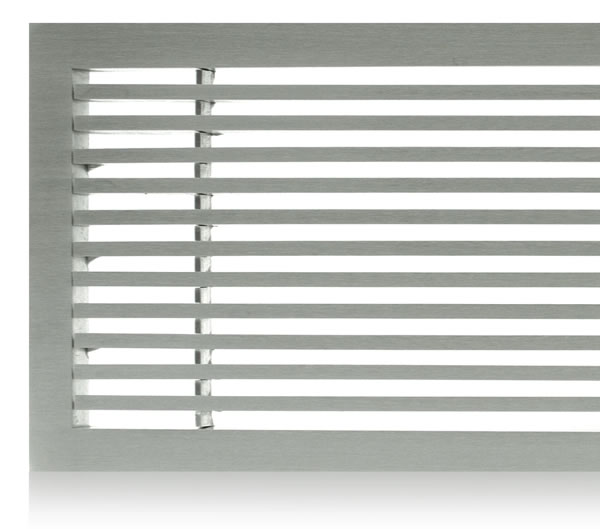

Fabricated with post-consumer 94% recycled aluminum with a brushed satin finish and available in a wide range of industry standard sizes, the AG20 B Frame Bar Grille is popular for new construction and renovations in residential or commercial properties.

  • BRUSHED SATIN finish
  • NO screw holes or screws
  • 3/4" flange
  • Aluminum construction
  • 45 Deg deflection blades
  • Pencil Proof: 1/4 inch spacing between bars

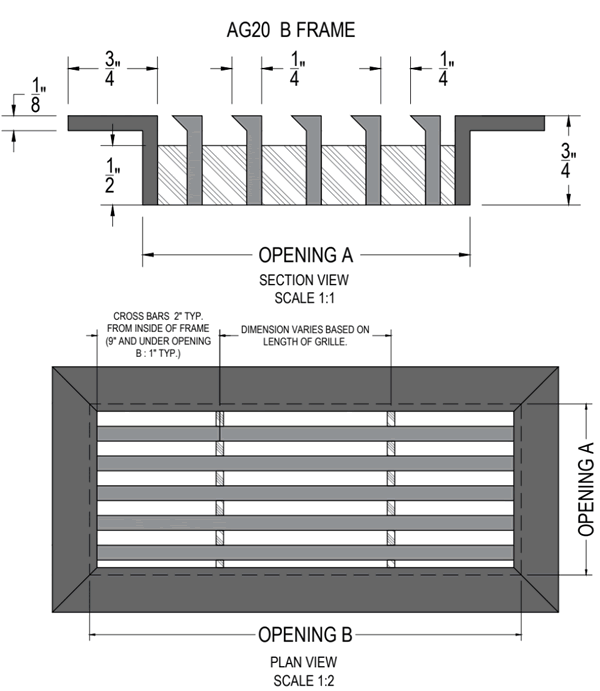

Sizes shown are the inside measurements of the grille that fits into the opening (without the flange). The actual opening should be 1/16" larger to ensure proper fit.  Don't see a size or option listed?  Call or email us.

model description usually ships price QTY
AG20B-4x24-BS Architectural Grille AG20 B frame bar grille. 4 in. x 24 in. (HxL). Brushed Satin finish. No screws. Sku 200042401. 3-4 Days $143.00

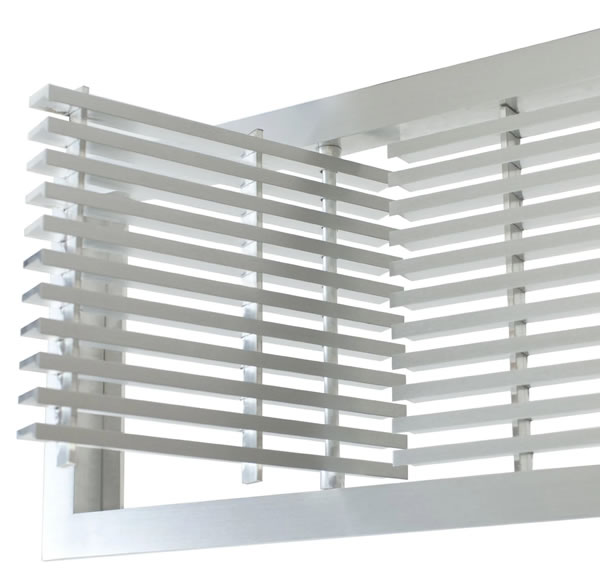

AG20B-4x24-BS-LD Architectural Grille AG20 B frame bar grille. 4 in. x 24 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200042431. 3-4 Days $233.00
AG20B-4x24-BS-RD Architectural Grille AG20 B frame bar grille. 4 in. x 24 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200042421. 3-4 Days $233.00
AG20B-4x30-BS Architectural Grille AG20 B frame bar grille. 4 in. x 30 in. (HxL). Brushed Satin finish. No screws. Sku 200043001. 3-4 Days $168.00
AG20B-4x30-BS-LD Architectural Grille AG20 B frame bar grille. 4 in. x 30 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200043031. 3-4 Days $258.00
AG20B-4x30-BS-RD Architectural Grille AG20 B frame bar grille. 4 in. x 30 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200043021. 3-4 Days $258.00
AG20B-4x36-BS Architectural Grille AG20 B frame bar grille. 4 in. x 36 in. (HxL). Brushed Satin finish. No screws. Sku 200043601. 3-4 Days $196.00
AG20B-4x36-BS-LD Architectural Grille AG20 B frame bar grille. 4 in. x 36 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200043631. 3-4 Days $286.00
AG20B-4x36-BS-RD Architectural Grille AG20 B frame bar grille. 4 in. x 36 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200043621. 3-4 Days $286.00
AG20B-4x42-BS Architectural Grille AG20 B frame bar grille. 4 in. x 42 in. (HxL). Brushed Satin finish. No screws. Sku 200044201. 3-4 Days $223.00
AG20B-4x42-BS-LD Architectural Grille AG20 B frame bar grille. 4 in. x 42 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200044231. 3-4 Days $313.00
AG20B-4x42-BS-RD Architectural Grille AG20 B frame bar grille. 4 in. x 42 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200044221. 3-4 Days $313.00
AG20B-4x48-BS Architectural Grille AG20 B frame bar grille. 4 in. x 48 in. (HxL). Brushed Satin finish. No screws. Sku 200044801. 3-4 Days $248.00
AG20B-4x48-BS-LD Architectural Grille AG20 B frame bar grille. 4 in. x 48 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200044831. 3-4 Days $338.00
AG20B-4x48-BS-RD Architectural Grille AG20 B frame bar grille. 4 in. x 48 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200044821. 3-4 Days $338.00
AG20B-6x24-BS Architectural Grille AG20 B frame bar grille. 6 in. x 24 in. (HxL). Brushed Satin finish. No screws. Sku 200062401. 3-4 Days $160.00
AG20B-6x24-BS-LD Architectural Grille AG20 B frame bar grille. 6 in. x 24 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200062431. 3-4 Days $250.00
AG20B-6x24-BS-RD Architectural Grille AG20 B frame bar grille. 6 in. x 24 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200062421. 3-4 Days $250.00
AG20B-6x30-BS Architectural Grille AG20 B frame bar grille. 6 in. x 30 in. (HxL). Brushed Satin finish. No screws. Sku 200063001. 3-4 Days $186.00
AG20B-6x30-BS-LD Architectural Grille AG20 B frame bar grille. 6 in. x 30 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200063031. 3-4 Days $276.00
AG20B-6x30-BS-RD Architectural Grille AG20 B frame bar grille. 6 in. x 30 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200063021. 3-4 Days $276.00
AG20B-6x36-BS Architectural Grille AG20 B frame bar grille. 6 in. x 36 in. (HxL). Brushed Satin finish. No screws. Sku 200063601. 3-4 Days $214.00
AG20B-6x36-BS-LD Architectural Grille AG20 B frame bar grille. 6 in. x 36 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200063631. 3-4 Days $304.00
AG20B-6x36-BS-RD Architectural Grille AG20 B frame bar grille. 6 in. x 36 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200063621. 3-4 Days $304.00
AG20B-6x42-BS Architectural Grille AG20 B frame bar grille. 6 in. x 42 in. (HxL). Brushed Satin finish. No screws. Sku 200064201. 3-4 Days $242.00
AG20B-6x42-BS-LD Architectural Grille AG20 B frame bar grille. 6 in. x 42 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200064231. 3-4 Days $332.00
AG20B-6x42-BS-RD Architectural Grille AG20 B frame bar grille. 6 in. x 42 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200064221. 3-4 Days $332.00
AG20B-6x48-BS Architectural Grille AG20 B frame bar grille. 6 in. x 48 in. (HxL). Brushed Satin finish. No screws. Sku 200064801. 3-4 Days $268.00
AG20B-6x48-BS-LD Architectural Grille AG20 B frame bar grille. 6 in. x 48 in. (HxL). Brushed Satin finish WITH LEFT DOOR. No screws. Sku 200064831. 3-4 Days $358.00
AG20B-6x48-BS-RD Architectural Grille AG20 B frame bar grille. 6 in. x 48 in. (HxL). Brushed Satin finish WITH RIGHT DOOR. No screws. Sku 200064821. 3-4 Days $358.00
