Dayus DAL2-WF 2 Inch Stationary Louver with WIDE Flange Frame

The DAL2-WF is a fully extruded 2 inch stationary louver with a WIDE flange frame. The blades prevent water penetration and maximize free area.

Features:

  • Wide flange for additional surface coverage
  • Fixed blade, architectural style, non-drainable louver
  • Heavy-duty, extruded aluminum flange frame
  • J-blade design minimizes water ingress while maximizing free area
  • Nominal 43% free area, based on 48" x 48" louver
  • Mullions used for sizes over 36" in length
  • Available on 1" standard dimensions
  • Bird screen included standard. Insect screen can be specified
  • Available with AAMA 2605 powder coat paint for high-performance exterior finishes.

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Type/Style:
LIST* Width:
LIST* Height: Please select WIDTH above first

*NOTE: The LIST width and height are the size of the OPENING the louver fits into.
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks - Least Expensive)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - NOT available for BLACK or BROWN finish

Bug Screen: Standard Bird Screen Only
Optional Bug/Insect Screen



Model Number:
DAL2~WF

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket).
Quantity:

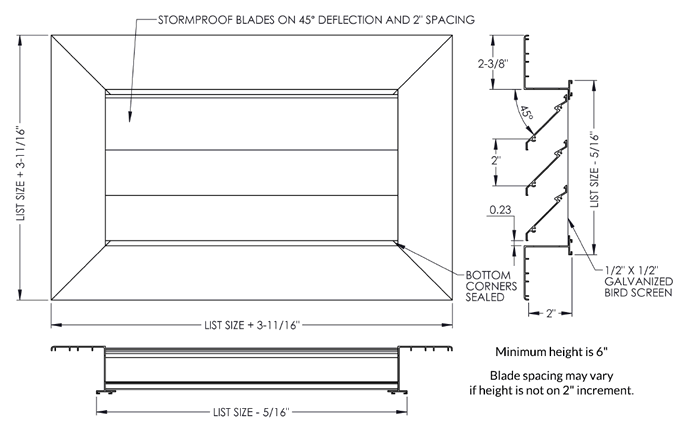

Dayus DAL2-WF louver specifications

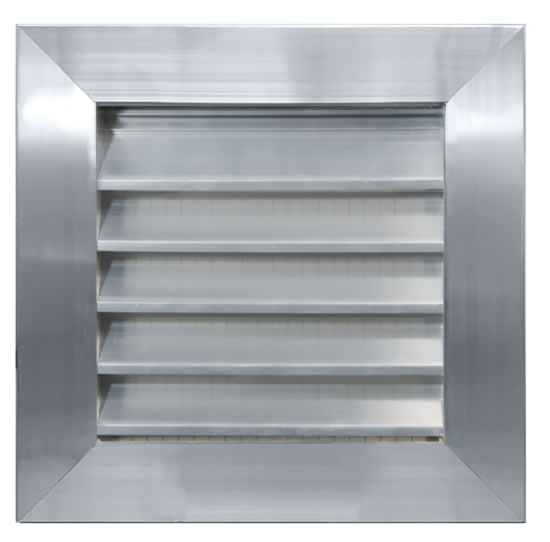

Dayus DAL2-WF louver



Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)
