S&P Series FGS Rear Flanged FIBREGLASS Shutter

S&P Series FGS Rear Flanged FIBREGLASS Shutter

The Model FGS is a rear flanged exhaust shutter for areas where corrosion is a known problem. The frame and blades are a heavy duty fiberglass pultrusion with stainless steel tie rods. Ideal for use with direct-drive or belt-driven exhaust fans in chemical plants and poultry/swine confinement operations. Recommended for vertical mount exhaust applications only.

FEATURES:
• Fiberglass pultrusion construction.
• Integrated weather stripping incorporated into frame for additional strength and weather protection.
• Maximum recommended velocity is 2,500 FPM. Temperature: -40 F to 180 F
• 304 stainless steel screws, pins, rivets and bushings.

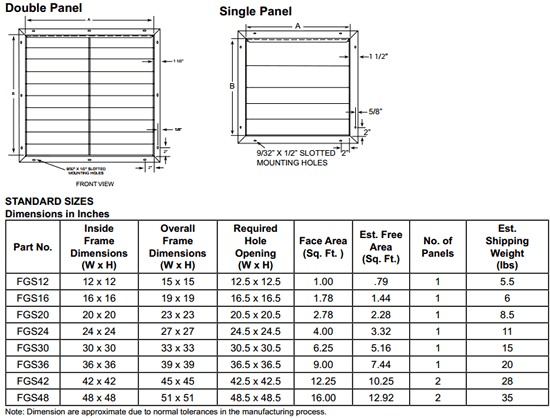

model description usually ships price QTY
FGS12 S&P 12" X 12" series FGS FIBERGLASS wall shutter. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $161.10
FGS16 S&P 16" X 16" series FGS FIBERGLASS wall shutter. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $204.50
FGS20 S&P 20" X 20" series FGS FIBERGLASS wall shutter. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $240.80
FGS24 S&P 24" X 24" series FGS FIBERGLASS wall shutter. Max velocity of 2500 FPM. 1 panel. 5-6 Weeks $288.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P FGS Shutters

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

S&P Series 304SS Stainess Steel Rear Flanged Exhaust Shutter

Rear flanged exhaust shutter for areas that require extreme corrosion resistance. The frame/blades are 304 stainless steel. 2500 fpm max.

S&P Series EASB & EASW PVC Blade Rear Flanged Shutter

Rear flanged exhaust shutters for areas where corrosion is a problem. UV stabilized PVC blades. White or black. 1,500 fpm max.

S&P Series EAS-RF Rear Flanged Shutter For Corrosion Prone Installations

Rear flanged shutter for high corrosion areas. The frame and blades are aluminum. Vertical mount exhaust only. 2,500 fpm max.

S&P Series EAS-HDGS Rear Flanged Shutter For Higher Velocity Applications

Rear flanged exhaust shutter. The frame and blades are extruded aluminum. Vertical mount exhaust only. 3,250 fpm max.
