Neptronic B SLOW Series Control Actuators 50 in.lb.

Neptronic B SLOW Series Control Actuators 50 in.lb.

These compact B SLOW series 50 in.lb. (5.6 Nm) torque quarter turn actuators may be directly coupled to either a 1/2 inch round or 3/8 inch square jack shaft or remotely mounted using an adaptor kit. All actuators are bi-directional. Enerdrive actuators are also bi-directional under fail safe conditions. The stroke may be limited to less than 90 deg echanically.

SLOW rotation actuators: 90-110 second rotation time.


model description usually ships price QTY
BT000S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 24 VAC or 30 VDC Power Required. *Not compatible with AirScape products. 2-3 Days $79.90
BT020S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 24 VAC or 30 VDC Power Required. 2-3 Days $113.10
BT060S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 24 VAC or 30 VDC Power Required. With Enerdrive failsafe system. 2-3 Days $149.70
BT080S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 24 VAC or 30 VDC Power Required. With Enerdrive failsafe system. 2-3 Days $184.10
BT100S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 120 VAC Power Required. With Enerdrive failsafe system. *Not compatible with AirScape products. 2-3 Days $94.10
BT120S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 120 VAC Power Required. 2-3 Days $128.40
BT160S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 120 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $167.60
BT180S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 120 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $201.60
BT200S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 240 VAC Power Required. 2-3 Days $94.10
BT220S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 240 VAC Power Required. 2-3 Days $128.40
BT260S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2 Position or 3 Point Floating Control. 240 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $167.60
BT280S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2 Position or 3 Point Floating Control. 240 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $201.60
BM000S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 24 VAC or 30 VDC Power Required. 2-3 Days $107.90
BM020S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2-10 VDC, or 4-20 mA Control. 24 VAC or 30 VDC Power Required. 2-3 Days $141.10
BM060S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 24 VAC or 30 VDC Power Required. With Enerdrive failsafe system. 2-3 Days $174.00
BM080S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. With Mechanical Auxiliary Switches. 2-10 VDC, or 4-20 mA Control. 24 VAC or 30 VDC Power Required. With Enerdrive failsafe system. 2-3 Days $208.70
BM100S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 120 VAC Power Required. 2-3 Days $137.80
BM160S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 120 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $192.60
BM200S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 240 VAC Power Required. 2-3 Days $137.80
BM260S Neptronic 50 in.lb. (5.6 Nm) Torque Actuator. 90 to 110 Seconds Rotation. No Feedback. 2-10 VDC, or 4-20 mA Control. 240 VAC Power Required. With Enerdrive failsafe system. 2-3 Days $192.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

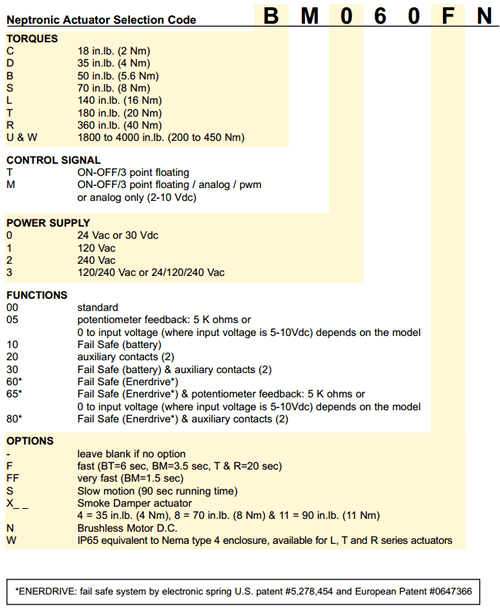

NEP Control Actuator Nomenclature

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   1.On the price and order in page I saw that the BM060S model actuator is priced at 140 Dollar.Is this product brand new?2.Is this product made in Canada?
A:   We only sell new items. These actuators are assembled in Montreal, Canada.

       Asked on 2020-07-26 by Laxman
