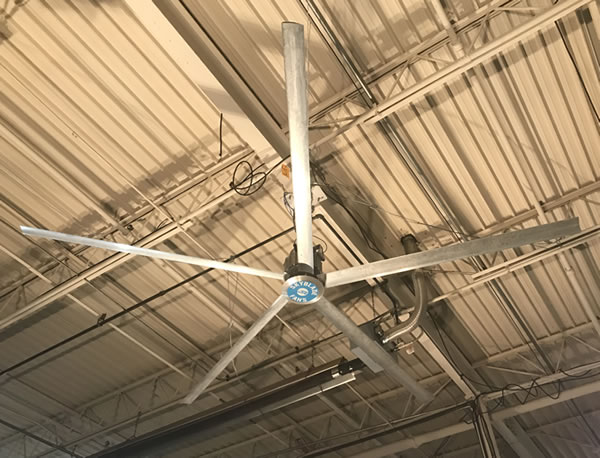

SkyBlade Shop Prop HVLS Ceiling Destratification Fans

SkyBlade Shop Prop HVLS Ceiling Destratification Fans

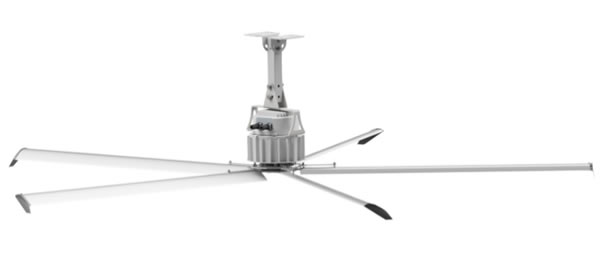

SkyBlade Shop Prop Series HVLS destratification fans are equipped with five extruded anodized, high performance aluminum blades. Contoured for maximum air movement, so environments become cooler faster. The direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor with an onboard VFD is factory assembled and programmed for minimum start/stop torque loads.

Each fan includes the DP-779 controller with a Fwd/Rev switch, 0-10 speed pot to control fan speed and a 100 ft. shielded connection cable.

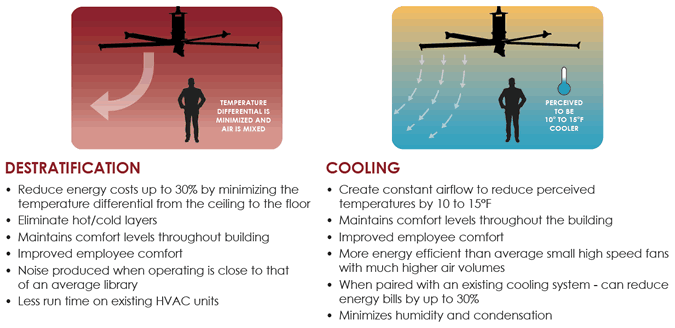

• Eliminate hot/cold layers
• Reduce energy costs up to 30% by minimizing the temperature differential from the ceiling to the floor
• Maintains comfort levels throughout building
• Improved employee comfort
• Noise produced when operating is close to that of an average library
• Standard 6.5 inch extension bar. Longer bars available
• Made in the USA

model description usually ships 1-2 units 3+ units QTY
SP-0618-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 6 ft diameter. 110 VAC (108-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3400.00 $3350.00
SP-0721-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 7 ft diameter. 110 VAC (108-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3400.00 $3350.00
SP-0824-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 8 ft diameter. 110 VAC (107-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3450.00 $3400.00
SP-1030-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 10 ft diameter. 110 VAC (107-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3475.00 $3425.00
SP-1236-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 12 ft diameter. 110 VAC (107-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3800.00 $3750.00
SP-1443-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 14 ft diameter. 110 VAC (107-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3850.00 $3800.00
SP-1649-512-1 SkyBlade Shop Prop Series direct drive HVLS fan. 16 ft diameter. 110 VAC (107-132 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3875.00 $3825.00
SP-0618-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 6 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3400.00 $3350.00
SP-0721-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 7 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3400.00 $3350.00
SP-0824-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 8 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3450.00 $3400.00
SP-1030-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 10 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3475.00 $3425.00
SP-1236-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 12 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3800.00 $3750.00
SP-1443-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 14 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3850.00 $3800.00
SP-1649-523-1 SkyBlade Shop Prop Series direct drive HVLS fan. 16 ft diameter. 220 VAC (207-253 V), 1 phase, 1.35 HP motor. Includes DP-779 yoke controller. 5-7 Days $3875.00 $3825.00
1002-2 SkyBlade 2 foot extension bar. 5-7 Days $69.00 $69.00
1002-3 SkyBlade 3 foot extension bar. 5-7 Days $89.00 $89.00
1002-4 SkyBlade 4 foot extension bar. 5-7 Days $109.00 $109.00
1002-5 SkyBlade 5 foot extension bar. 5-7 Days $139.00 $139.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

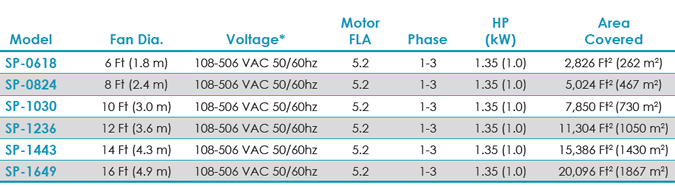

skyblade shop prop specifications



skyblade shop prop fan

skyblade shop prop hvls fan

skyblade
