S&P MD Series Motorized Dampers

The S&P MD series normally closed (power open) motorized dampers for round ducts can be used to control the sequencing of outside air in forced-air systems.  The standard dampers are 24V but you can add the 120V to 24V transformer to power them with standard 120VAC.

Available in sizes 4 through 14 inch.

NORMALLY CLOSED = Closed damper when power OFF

model description usually ships price QTY
MD4 S&P motorized backdraft damper for 4" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $72.00
MD5 S&P motorized backdraft damper for 5" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $72.00
MD6 S&P motorized backdraft damper for 6" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $73.70
MD8 S&P motorized backdraft damper for 8" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $82.00
MD10 S&P motorized backdraft damper for 10" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $97.60
MD12 S&P motorized backdraft damper for 12" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $106.30
MD14 S&P motorized backdraft damper for 14" round duct. Normally closed. 24VAC motor. 1 Day. In-stock $113.70
T120-24V S&P 120VAC to 24VAC transformer. For use with MD series dampers. 1 Day. In-stock $18.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

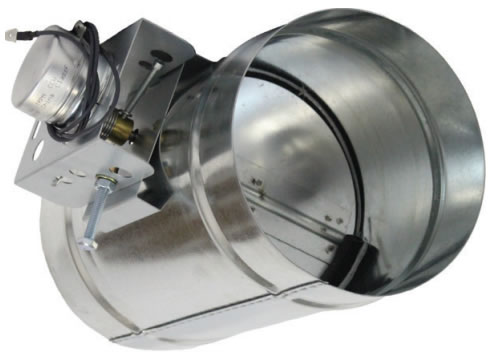

Soler Palau MD Damper

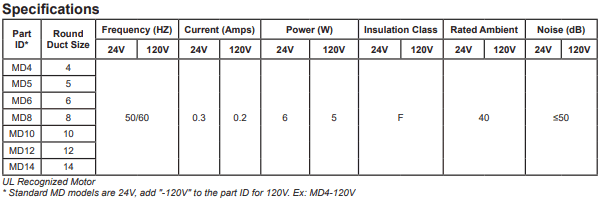

Soler Palau MD Damper Specifications

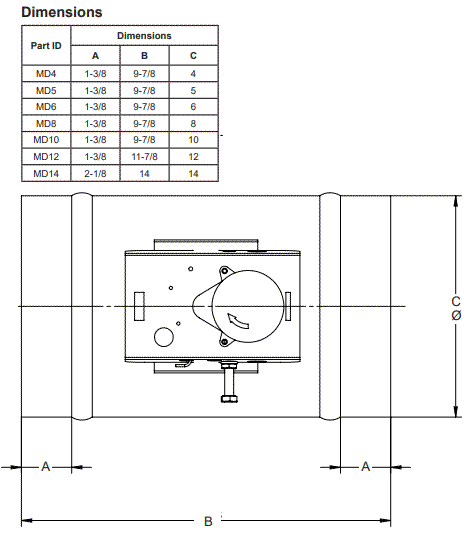

Soler Palau MD Damper Dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   How often does the MD6 exchange in outside air? How is this controlled and is there a way to turn it off during extreme outside temperatures?
A:   This is just a motorized damper. It is normally connected to a controller for on/off operation. Take a look at the MD6-ES24VK damper and controller kit: https://www.hvacquick.com/products/commercial/Commercial-Fans/Makeup-Air-Fans/S-P-MD6-ES24VK-Outside-Air-Motorized-Damper-Kit

       Asked on 2024-01-13 by TW
#2 Q:   How long does it take for the damper to fully open?
A:   3-4 seconds actuation time.

       Asked on 2023-05-01 by Matt
#3 Q:   What is the actuators Operating Temperature Range and Torque? Is the actuator made for both 24VAC and 24VDC?
A:   These need to be kept under 104F and are for 24vac. Torque values are not provided nor did the factory know.

       Asked on 2023-01-16 by FM
#4 Q:   When closed, does this damper form an airtight seal?
A:   Depends on your definition of airtight. The blade closes against a rubber seal.

       Asked on 2022-05-16 by AA
