Airscape

AirScape Bath Ventilation Packages

These kits listed below are 'inline' bath ventilation kits where the fan is mounted remotely in the attic. The result is almost no noise.

    Features:
  • 105 to 450 CFM - Actual CFM under operating conditions
  • Ultra quiet (and it stays that way over years)
  • Inlet grille (1 or 2), backdraft damper(s), inline fan
  • The CVK version adds duct, roof cap, electronic timer.

If you want to substitute a wall hood instead of a roof cap, please call us or indicate the request on your order.  Installation or application questions?  CALL US @ 877-711-4822.

model description usually ships price QTY
VK-105 4" bathroom exhaust system. 105 CFM fan with 1 grille. Includes fan (AS100DC), 1 grille, 6-4 reducer, & backdraft damper box. 1 Day. In-stock $109.00
CVK-105 4" COMPLETE bathroom exhaust system (105 CFM fan, 1 grille). Includes fan (AS100DC), 1 grille & damper box, 6-4 inch reducer, 25 feet of 4" acoustic duct, galvanized roof cap, 6260W (20 amp) electronic timer and 4 tie wraps. 1 Day. In-stock $179.00
VK-210 6" bathroom exhaust system. 210 CFM fan with 1 grille. Includes fan (AS150DC-W), 1 grille & backdraft damper box. 1 Day. In-stock $135.00
CVK-210 6" COMPLETE bathroom exhaust system (210 CFM fan, 1 grille). Includes fan (AS150DC-W), 1 grille & damper box, 25 feet of 6" acoustic duct, galvanized roof cap, 6260W (20 amp) electronic timer, and 4 tie wraps. 1 Day. In-stock $219.00
VK-260 6" bathroom exhaust system. 260 CFM fan with 2 grilles. Includes fan (AS150EH), 2 grilles & backdraft damper box. 1 Day. In-stock $173.00
CVK-260 6" COMPLETE bathroom exhaust system (260 CFM fan, 2 grilles). Includes fan (AS150EH), 2 grilles & damper boxes, 25 feet of 6" acoustic duct, Y-fitting, galvanized roof cap, (1) 6260W (20 amp) electronic timer (MUST ORDER ADDITIONAL TIMER FOR DUAL-BATH VENTILATION), and 8 tie wraps. 1 Day. In-stock $279.00
VK-450 8" bathroom exhaust system. 450 CFM fan with 2 grilles. Includes fan (AS200EH-W), 2 grilles & backdraft damper box. 1 Day. In-stock $211.00
CVK-450 8" COMPLETE bathroom exhaust system (450 CFM fan, 2 grilles). Includes fan (AS200EH-W), 2 grilles & damper boxes, 25 feet of 6" acoustic duct, 25 feet of 8" duct, Y-fitting, galvanized roof cap, 6260W (20 amp) electronic timer (MUST ORDER ADDITIONAL TIMER FOR DUAL-BATH VENTILATION), and 7 tie wraps. 1 Day. In Stock $329.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

       Part                                                                 Kit CVK-105CVK-210 CVK-260 CVK-450

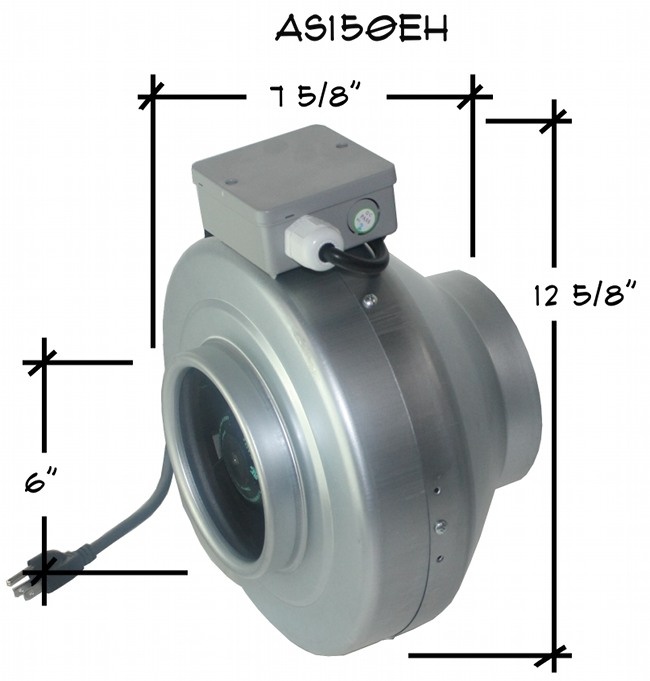

Inline fan,motorized impeller, electrical cord.

(C)VK-105 = AS100DC
(C)VK-210 = AS150DC
(C)VK-260 = AS150EH
(C)VK-450 = AS200EH

1 Qty. 1 Qty. 1 Qty. 1 Qty.

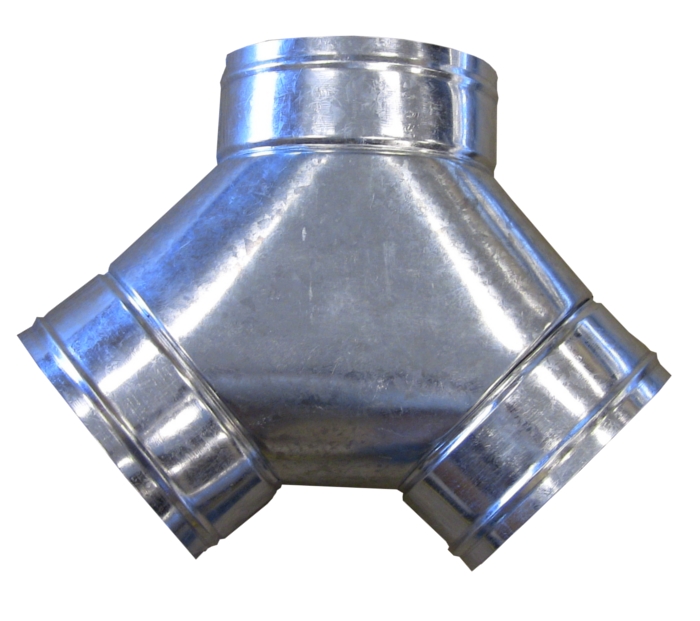

Y Fitting -- --

1 Qty.
6"x6"x6"

1 Qty.
8"x6"x6"

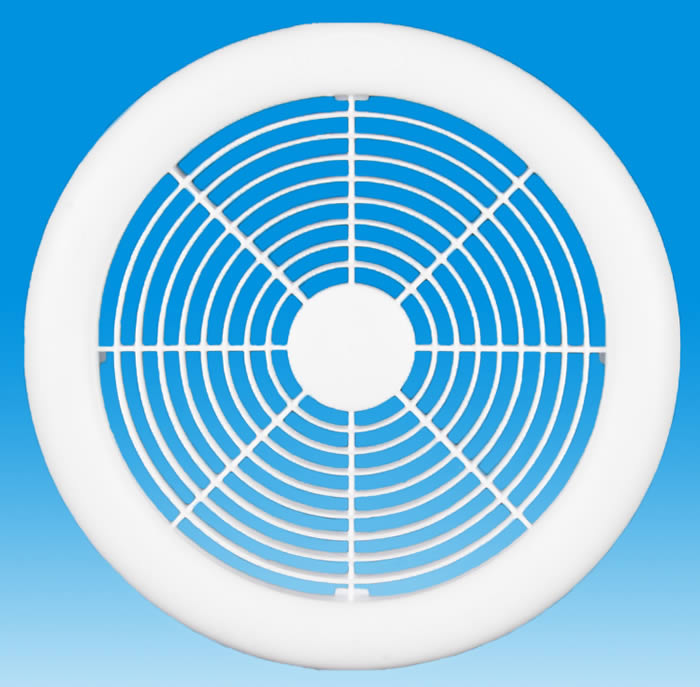

Plastic, high flow, low noise grille. 1 Qty. 1 Qty. 2 Qty. 2 Qty.

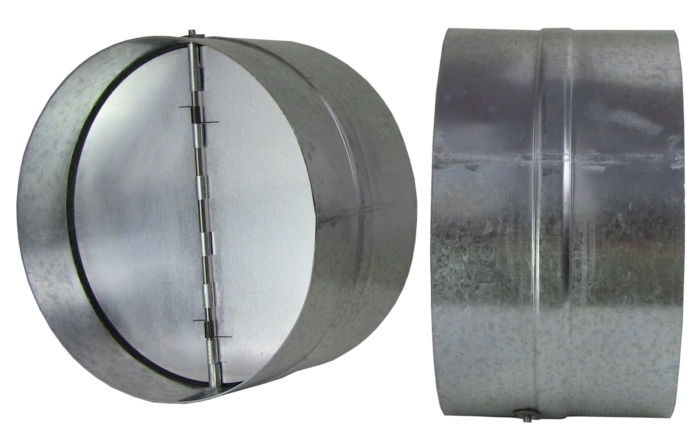

Backdraft damper with spring stops air flow when fan is off. 1 Qty. 1 Qty. 2 Qty. 2 Qty.

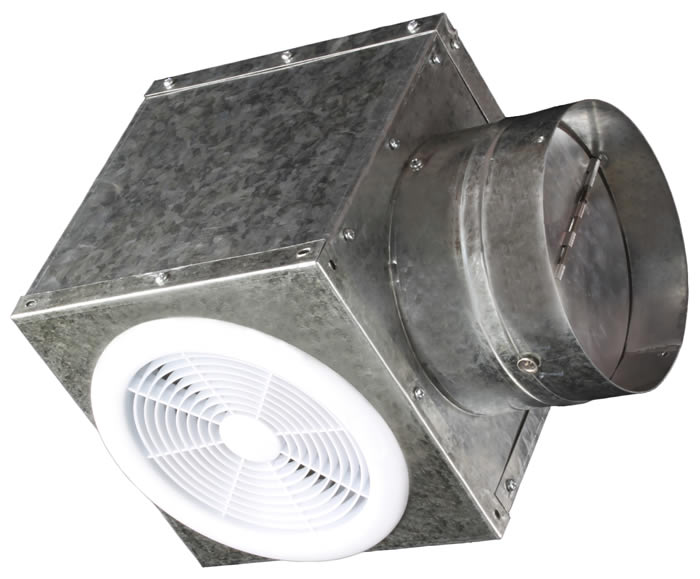

Galvanized steel plenum box. Picture shows grille and backdraft damper attached. 1 Qty. 1 Qty. 2 Qty. 2 Qty.

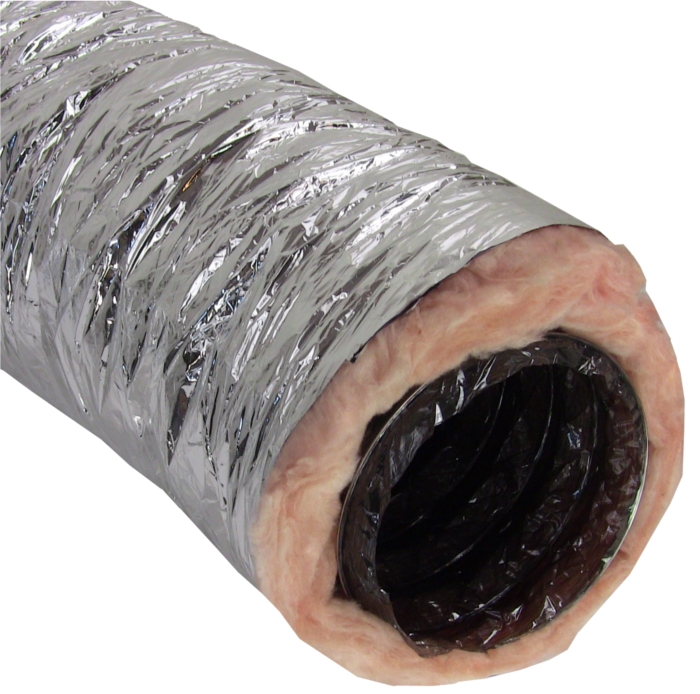

Insulated duct with metallized cover drops out fan noise. 25' of 4" duct 25' of 6" duct 25' of 6" duct 25' of 6" duct, 25' of 8" duct

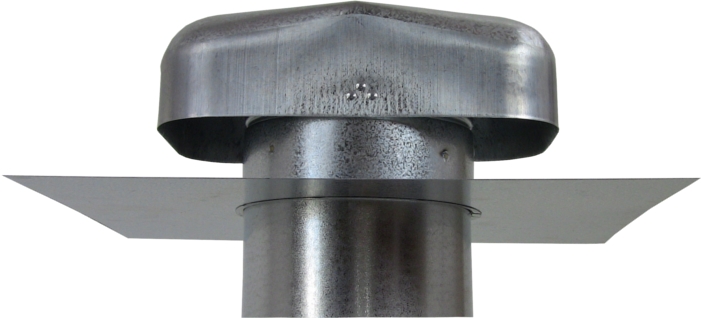

Galvanized steel roofcap with extension for easy duct attachment.

1 Qty.
4"

1 Qty.
6"
1 Qty. 6" 1 Qty. 8"

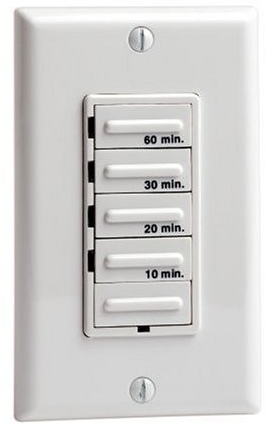

This Leviton electronic timer is essential, since you will forget the fan is on. (can't hear it, really!) 1 Qty. 1 Qty. 1 Qty. 1 Qty.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What are the grate dimensions for VK210?
A:   The dims of the grille are 7.5x7.5. These are the outer dimensions.

       Asked on 2014-09-16 by Grim
#2 Q:   Would each bathroom have its own switch to turn system on?
A:   They can, the complexity of wiring will be dictated by how the baths are wired...specifically if they are or are not on the same circuit. Still can be done either way, one way is just more challenging.

       Asked on 2014-03-16 by Ron
#3 Q:   whats the dimension of grille and backdraft damper box in vk-105,and can I used my existing 15A electronic timer for fan(as100dc)?
A:   The box is 11.5x8x6 with the damper...That circuit will be more than adequate for this fan as well.

       Asked on 2014-02-02 by JTO
#4 Q:   Does this take the place of existing exhaust fans in the bathroom? Is this for pulling steam out of the bathroom and therefore water resistant?
A:   Yes to all accounts. These inline fans are typically much stronger than the ceiling mounted motors builders install, and quieter as we are able to mount them farther away.

       Asked on 2014-01-25 by Jeff
