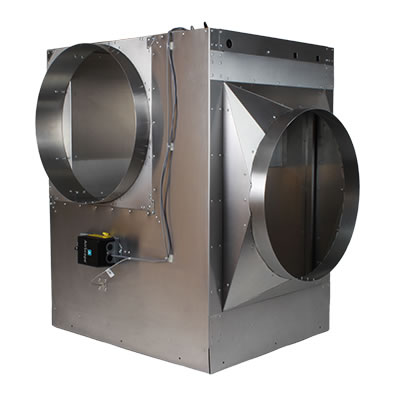

AirScape Residential Economizer

The AirScape residential economizer supplies the home’s central air conditioner with outdoor air whenever doing so would be more efficient than conditioning recirculated indoor air, substantially reducing household cooling expenses.

The economizer's straightforward, packaged design makes installation a breeze. The unit, which fits between 24" on-center framing, is positioned over the home's central air return and "upstream" of the air handler and cooling coil. Wiring connections are made to an outdoor and indoor temperature sensor, and to the home's thermstat. The economizer can be used with any thermostat.

  • Compatible with all residential thermostats and condensing units.
  • Installs easily on 24" O/C framing; prewired with indoor and outdoor air temperature sensors, as well as a 10' power cord.

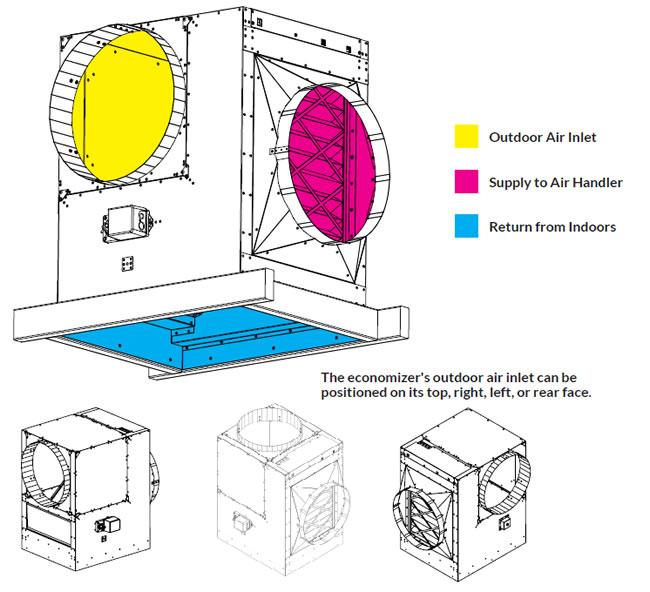

  • Design of unit includes repositionable flanges for round 18" duct connections, a relief damper, and a 18" × 24" × 2" MERV-8 filter.

For more information and pricing please us a call at 877-711-4822.

model description usually ships 1-2 units 3+ units QTY
ECONOMIZER EC2 Installs on 24in O/C framing; prewired with indoor and outdoor air temperature sensors, as well as a 10ft power cord. Design of unit includes repositionable flanges for round 18in duct connections, a relief damper, and a 18 × 24 × 2 MERV-8 filter. 1-2 Weeks $1079.00 $1079.00
FB18X24X2-1FILTER 18x24x2 (17.5 x 23.5 x 1.75 Actual Size). Replacement EC2 Economizer Accumulair MERV 8 filter. 1 filter. 1 Day. In-stock $12.90 $9.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

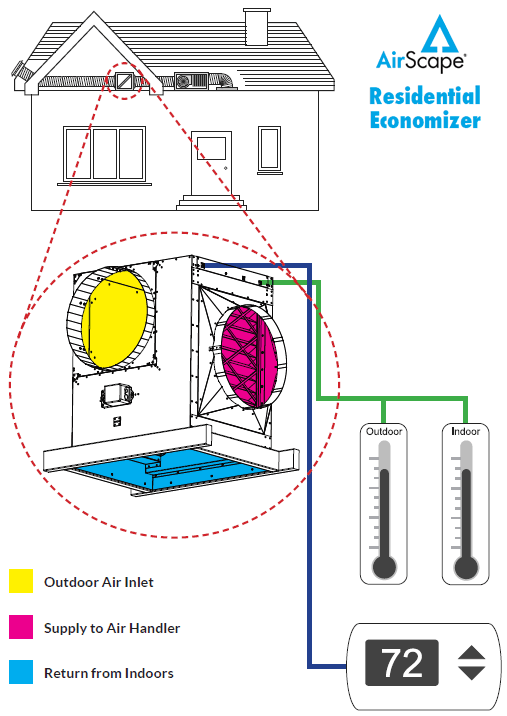

AirScape Residential Economizer System Layout

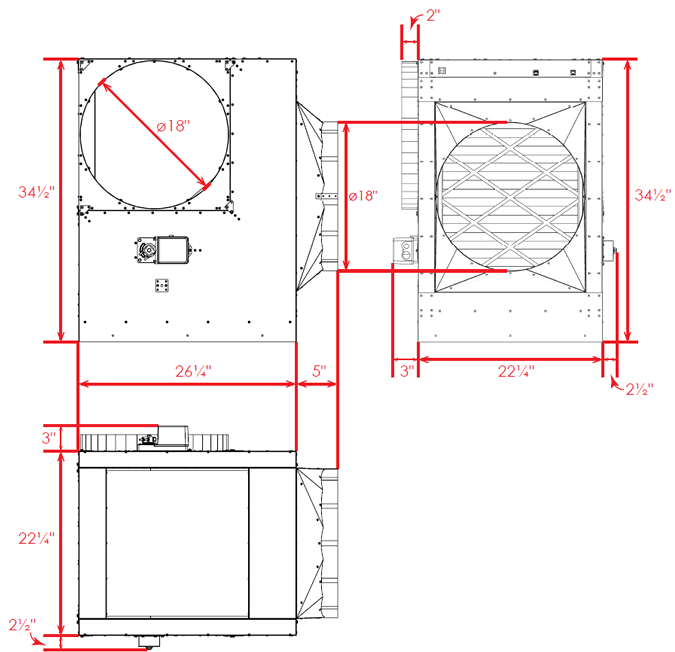

AirScape Residential Economizer Dimensions

  Links:

  AirScape Economizer Brochure (PDF file)

  AirScape Economizer Installation Manual (PDF file)

  Click any image below to enlarge it

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Is this economizer unit a modulating unit?Also, how much ,percentagewise would I save in air conditioning bills ,per year or mpntg, if I have this installed? I live in Northern California.
A:   It does not modulate as we dont want to add raw air when the hvac system is not expecting it. There are systems to add some fresh air, but this is more a cooling device Very difficult to measure savings due to varied conditions etc, but it could be similar to whole house fan savings. Slight difference though as this will still use your blower but the outside unit will not run

       Asked on 2023-10-03 by Alex
#2 Q:   My 3000SF rancher has two returns. Will I need one for each return and operate in tandem? Can I install it in just one return?
A:   If you install just one, you will only get half the effect because only half the air will be outside and the rest will be return air via the other return. Ideally you want each return to have an economizer.

       Asked on 2021-04-30 by Upstate208
#3 Q:   Do you have different size models?
A:   Only the 1 size for now. Sorry.

       Asked on 2020-09-10 by dayne
#4 Q:   When you want to run 100% OSA do you shift to fan only so that the condenser isnt running?
A:   You can certainly do that. Typically these are run independent of the thermostat setting. If the condenser runs the cool outside air will reduce the cooling load.

       Asked on 2020-08-13 by Aaron
#5 Q:   If the economizer opens whenever it is cooler outdoors than in, does that mean Humidity is not taken into consideration at all?Regarding the barometric relief damper to allow indoor air to escape into the attic, can this be ducted to a louver if locating this unit in a non-ventilated plenum space?
A:   This is primarily meant as a west coast product. It is strictly temperature control and does not look at enthalpy. You could technically duct the relief but it is not advised as the pressure drop of the duct and the louver would lower hinder the barometric relief.

       Asked on 2019-06-07 by Paul
