AirScape DVS WHF Whole House Fan

The DVS whole house fan is the first ever to be designed specifically for use in home without attics or with sealed attics.

AirScape engineers have taken our patent-pending 5300 fan and transformed it into a new design that exhausts directly to the outdoors. Their evolutionary approach preserves the 5300's record-breaking performance, sacrificing no efficiency while remaining powerful enough to cool even the largest homes. Designed to mount to the inside of a roof or exterior wall, DVS units allow all homeowners to finally enjoy the environmental and financial benefits of an AirScape whole house fan!

  • Available in two mounting variants: the standard models sit within the framing to which they are mounted, the flanged version sits atop the framing.
  • Available in ductless and ducted variants. Ductless models draw air directly into the fan. Ducted models draw air through a register and ductwork before exhausting it through the fan.
  • 24-inch, industrial-grade fan - patent-pending design
  • ECM motor provides outstanding power (1316 – 5064 cfm) and efficiency (28 – 810 watts)
  • Automatic, R-10 insulated backdraft damper seals airtight to prevent heat loss in winter
  • New Digital Touch Controller provide 10 speed settings and a 12-hour timer
  • California Title 24 compliant.
  • Outdoor openings must be protected from the elements by louvers, a wall hood, or other appropriate method, which are not included.
  • These units' installation is a bit more involved than that of our standard whole house fans, so we recommend consulting with a licensed engineer or general contractor.

model description usually ships price QTY
DVS-NF-ND AirScape DVS Whole House Fan. Includes fan with ECM motor, damper box, and wall mounted Digital Touch Controller. Features include: Plug-and-Play Connections (RJ-45), 12-hour Timer, 10 speeds (1316 to 5064 CFM). 2-3 Weeks $2819.00
DVS-F-ND AirScape DVS Whole House Fan. Includes fan with ECM motor, damper box, and wall mounted Digital Touch Controller. Features include: Plug-and-Play Connections (RJ-45), 12-hour Timer, 10 speeds (1316 to 5064 CFM). OPTIONAL front mounting flange included. 2-3 Weeks $2929.00
DVS-NF-D AirScape DVS Whole House Fan. Includes fan with ECM motor, damper box, and wall mounted Digital Touch Controller. Features include: Plug-and-Play Connections (RJ-45), 12-hour Timer, 10 speeds (1316 to 5064 CFM). OPTIONAL 7 foot duct and intake grille with box included. ***SHIPS FREIGHT*** 2-3 Weeks $3239.00
DVS-F-D AirScape DVS Whole House Fan. Includes fan with ECM motor, damper box, and wall mounted Digital Touch Controller. Features include: Plug-and-Play Connections (RJ-45), 12-hour Timer, 10 speeds (1316 to 5064 CFM). OPTIONAL 7 foot duct, intake grille with box and front mounting flange included. ***SHIPS FREIGHT*** 2-3 Weeks $3349.00
RC-DTC-KIT Airscape Wireless Remote Kit. Includes remote transmitter (DTC-TRANS-V1) and wireless receiver (RC-REC-V1). Full speed range and timer function. Battery operated (included). Compatible with Digital Touch Controller only. 1 Day. In-stock $79.00
DTC-TRANS-V1 Additional wireless remote transmitter. Includes remote transmitter (DTC-TRANS-V1) only. Battery operated (included). Compatible with Digital Touch Controller only. 1 Day. In-stock $39.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

Brochures:

DVS-F-D Specification Sheet (PDF file)

DVS-F-ND Specification Sheet (PDF file)

DVS-NF-D Specification Sheet (PDF file)

DVS-NF-ND Specification Sheet (PDF file)

DVS Installation Manual (PDF file)

Specifications:

Airflow: 1316 to 5064 CFM  (10 speed settings)
For Square footage: up to 5000 (under ideal conditions)
Fans: 24 inch industrial grade fan
Energy Use: TBA
Efficiency: TBA
Acoustical: 39 - 65 dBA @1m min - max (with optional acoustical duct)
Attic Seal: Air Tight with Industrial Grade Dampers
Insulation: Automatic Insulated R-10 Dampers
Controls: Low-voltage hardwired switch with timer, Optional Wireless Remote
Grille: High-Flow, White Aluminum cube-core (optional with ducted unit)
Grille Outer Dimensions: 24.5 inch X 28.5 inch
Installation: Compatible on 16 or 24 inch O/C joists (ducted version - see installation manual)
Rough Opening: 39.5 inch X 39. 5 inch (max - see installation manual)
Shipping Weight: 140 lbs
Electrical: 120 VAC, 60hz, 7 Amps
Warranty: 3 Years

Digital Touch Controller in action (click for youtube.com video):

Images:

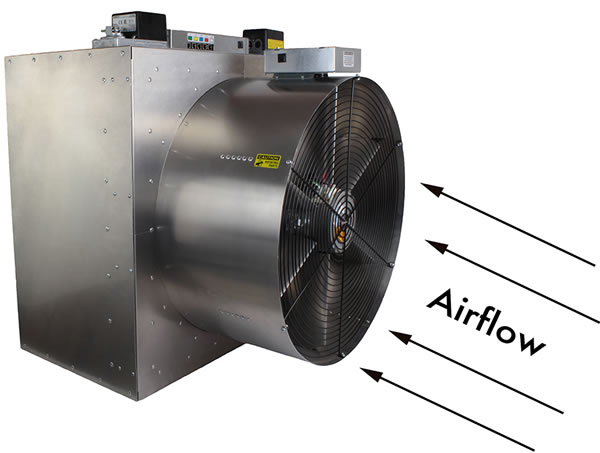

airscape dvs whf unit

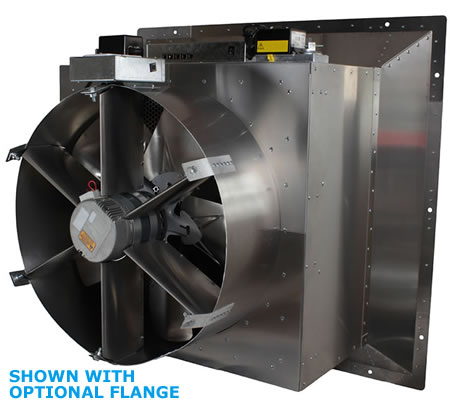

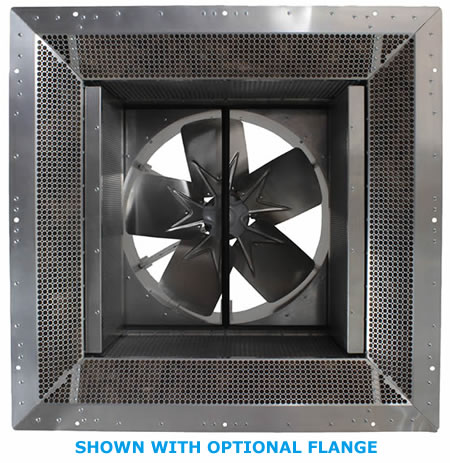

airscape dvs whf fan

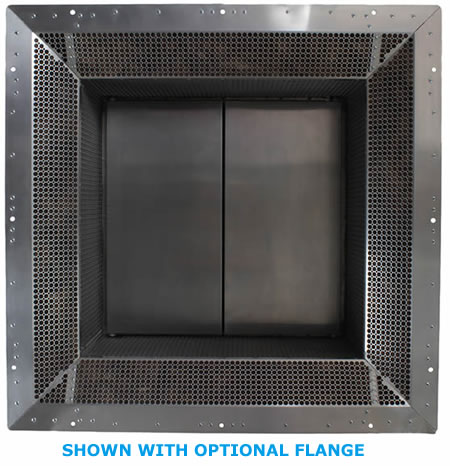

airscape dvs whf damper

airscape dvs whf grille
