Imperial C2000 SD4 Air Ring Mesh Series Stainless Powered Liners 18-1/8 Inch Deep

Imperial C2000 SD4 Mesh Filter Series inserts. 430 CFM motor built-in.  Variable switches for control of fan and light dimmer settings.  Inserts are easy to install with all inclusive liners and blowers.

  • 18-1/8" depth, 6" height
  • 30, 36, 42 and 48 nominal widths
  • "Air-Ring" fan motor with 430 CFM (2.5 - 7.6 sones)
  • Variable switches for control of fan and lights
  • One 38 watt halogen light
  • Stainless steel constuction and mesh filters (included)
  • Built-in backdraft damper
  • 7" round duct opening
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030SD4-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 30" wide. 430 nominal CFM @ 2.5 to 7.6 Sones, 7" Duct 1-2 Weeks $472.60
C2036SD4-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 36" wide. 430 nominal CFM @ 2.5 to 7.6 Sones, 7" Duct 1-2 Weeks $493.20
C2042SD4-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 42" wide. 430 nominal CFM @ 2.5 to 7.6 Sones, 7" Duct 1-2 Weeks $520.50
C2048SD4-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 48" wide. 430 nominal CFM @ 2.5 to 7.6 Sones, 7" Duct 1-2 Weeks $561.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

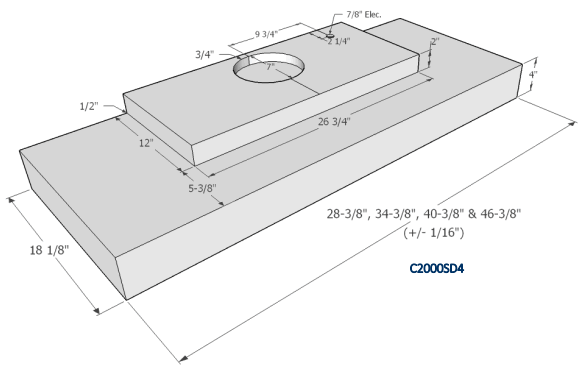

Imperial SD4 liner specs

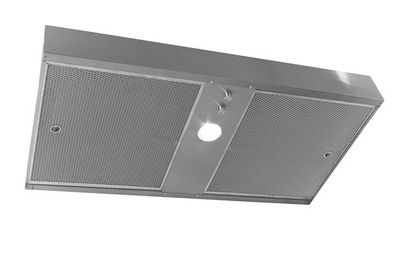

Imperial SD4 liner
