Airtec Series MV Ceiling Diffusers and Grilles

A snap to install in any ceiling!

Quick tear off bands allow for easy size changes and swinging clips will fasten the assembly into the ceiling in seconds. Made from high impact polymers (plastic) and featuring a virtually airtight damper for winter shut off and/or volume control makes them a great fit in any application.

Four grille patterns allow optimum air flow direction for any room. Center handle turns easily for full range of air flow adjustment.  Note the maximum ceiling thickness (drywall) is 1.25 inches.

model description usually ships price QTY

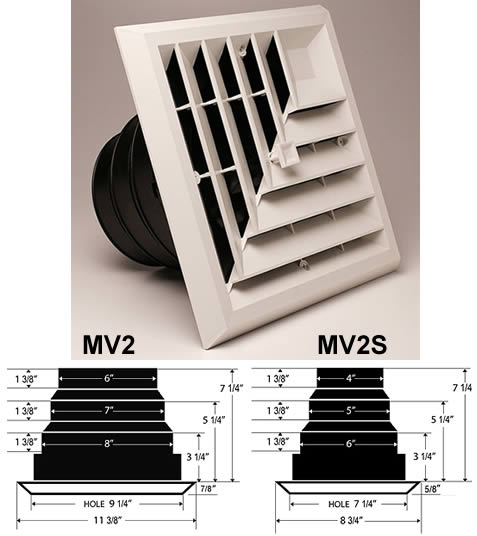

MV2 Airtec model MV ceiling diffuser with 2 way grille and damper. 6, 7, 8 inch round connections. 11-3/8 inch square face. [81912] 1 Day. In-stock $40.41
MV2S Airtec model MV ceiling diffuser with 2 way grille and damper. 4, 5, 6 inch round connections. 8-3/4 inch square face. [81902] 1 Day. In-stock $31.88

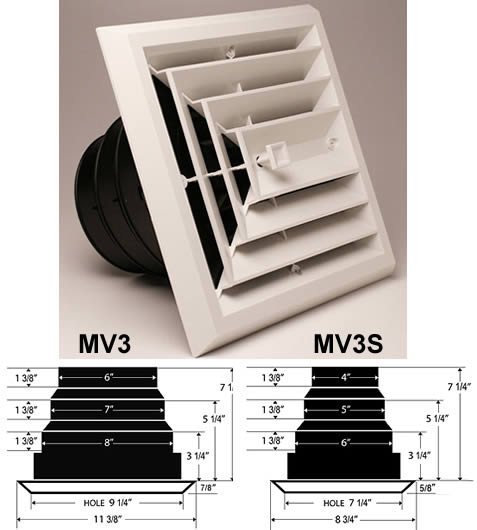

MV3 Airtec model MV ceiling diffuser with 3 way grille and damper. 6, 7, 8 inch round connections. 11-3/8 inch square face. [81913] 1 Day. In-stock $40.41
MV3S Airtec model MV ceiling diffuser with 3 way grille and damper. 4, 5, 6 inch round connections. 8-3/4 inch square face. [81903] 1 Day. In-stock $31.88

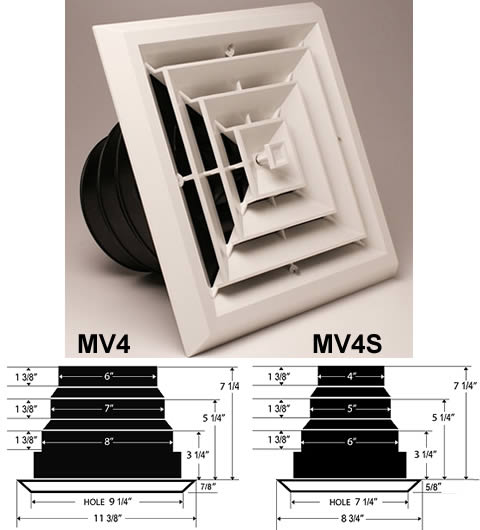

MV4 Airtec model MV ceiling diffuser with 4 way grille and damper. 6, 7, 8 inch round connections. 11-3/8 inch square face. [81914] 1 Day. In-stock $40.41
MV4S Airtec model MV ceiling diffuser with 4 way grille and damper. 4, 5, 6 inch round connections. 8-3/4 inch square face. [81904] 1 Day. In-stock $31.88

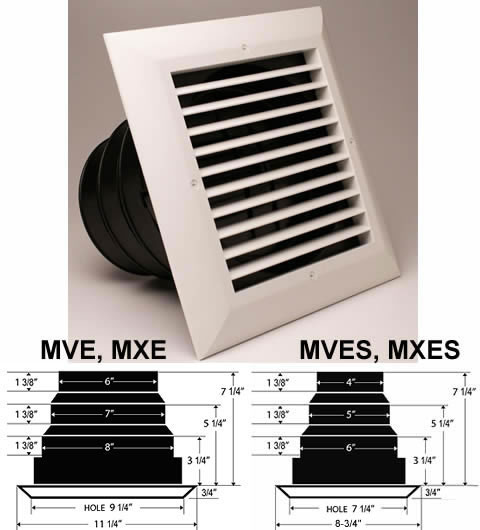

MVE Airtec model MV RETURN/EXHAUST grille with damper. 6, 7, 8 inch round connections. 11-1/4 inch square face. [81915] 1 Day. In-stock $40.41
MVES Airtec model MV RETURN/EXHAUST grille with damper. 4, 5, 6 inch round connections. 8-3/4 inch square face. [81905] 1 Day. In-stock $31.88
MXES Airtec model MV RETURN/EXHAUST grille with NO damper. 4, 5, 6 inch round connections. 8-3/4 inch square face. [81906] 1 Day. In-stock $27.69
MXE Airtec model MV RETURN/EXHAUST grille with NO damper. 6, 7, 8 inch round connections. 11-1/4 inch square face. [81916] 1 Day. In-stock $36.96
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



mv2



mv3



mv4



mve

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Looking to install MV4S in ceiling of basement, drywall finished. Can the 8,6,4 bands collapse to provide me additional flexibility with the limited above ceiling space? All existing ducts are 4 round flex.
A:   The boot is rigid. It will not collapse. You remove the unused 4 or 6 inch reducer sections. If you are connecting using the 4 inch collar then you have the full height of the boot.

       Asked on 2022-03-05 by B Collins
#2 Q:   Can any of the Airtec be used for wall mount supply or returns?
A:   The grille mounting tabs are designed for ceilings. If you install the grille on a wall you need to make sure the duct and collar is well supported so the tabs to not break the drywall due to gravity pulling the duct/collar down.

       Asked on 2021-06-01 by Mark
#3 Q:   My vent ends in a square 8 by 8. Will these fit?
A:   These are meant to connect to round duct. If you look at the Specs/Pics tab on the page there are dimensional profile diagrams that show the diameters of each duct connection section.

       Asked on 2019-10-09 by Marco
#4 Q:   Can these vents be used for a Suspended Ceiling with tiles?
A:   Yes you can, you will use DCF or DCFS depending on which model you are using. These will be brackets that provide support for the grille against the rails as opposed to that tile itself.

       Asked on 2018-10-27 by Dan
#5 Q:   Does the one direction model have a damper? I do not see a knob, slider, or way to close a damper.
A:   The model description with say WITH DAMPER if one is included. See slide 8 of the install manual for adjustment instructions: http://www.hvacquick.com/catalog_files/Airtec_MV_Instructions.pdf

       Asked on 2017-08-19 by David
#6 Q:   Im wondering if I can get them with a booster fan in them for better air flow?
A:   There is no booster fan option on these.

       Asked on 2014-09-14 by Dwayne
#7 Q:   I am looking for an exhaust grill for the bathroom in my condo. The condos have a central roof mounted exhaust fan system that runs all the time. I want to be able to easily close off my individual unit when not needed on a daily basis. I installed a round 6 flexible aluminium tube and cut a hole in the drop sheetrock ceiling when we remodeled but my wife thinks we need something to finish off the project...go figure! Whats your suggestion? Thanks
A:   The easiest to operate and the best looking would be the Seiho TT or JRC grilles. These Airtecs are adjustable but mostly for initial balancing of the system.

       Asked on 2013-12-13 by Rick.....Kerrville Tx.
#8 Q:   Im trying to replace a ceiling vent. The hole measures 15X15. Do you have anything that will fit that? What Im seeing on here looks smaller.
A:   Take a look at the Dayus Grilles, we can make something custom in that size.

       Asked on 2013-12-09 by Naomi
