S&P VL Intake Grilles with LIGHTS and Backdraft Dampers

Soler & Palau exhaust grills WITH BUILT-IN LIGHTS. Box with hanger bars and backdraft damper standard.

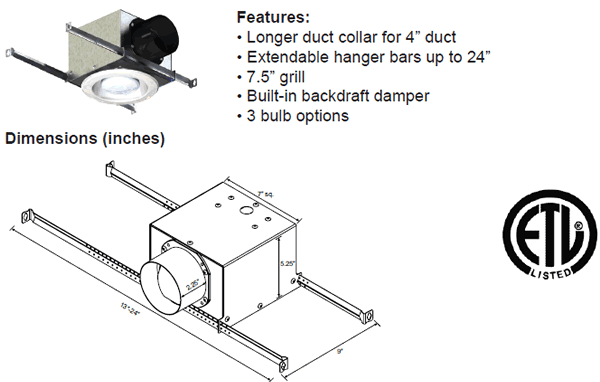

Features:
• Longer duct collar for 4” duct
• Extendable hanger bars up to 24”
• 7.5” plastic grill cover
• Built-in backdraft damper
• 3 bulb options

model description usually ships price QTY

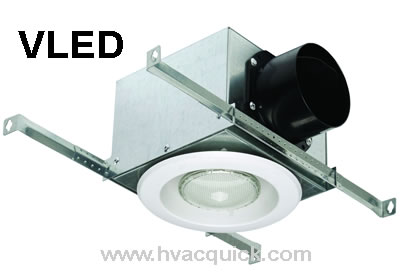

VLED-100 S&P 4" intake LIGHT grille with mounting box and built-in backdraft damper. LED bulb. 1 Day. In-stock $135.70

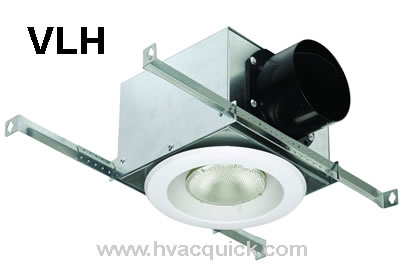

VLH-100 S&P 4" intake LIGHT grille with mounting box and built-in backdraft damper. HALOGEN bulb. 1 Day. In-stock $106.30

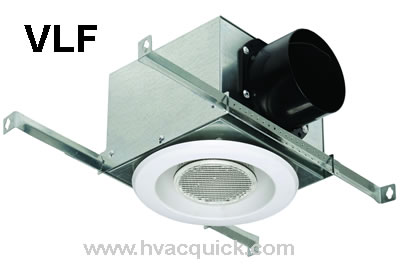

VLF-100 S&P 4" intake LIGHT grille with mounting box and built-in backdraft damper. FLUORESCENT bulb. Energy Star Rated. 1 Day. In-stock $104.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

s and p grilles

s and p grilles

s and p grilles

s and p grilles

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Is the light permanent or can it be unscrewed and replaced like a normal recessed fixture?
A:   The halogen and LED are PAR30 bulbs and can be replaced with others as long as they are the PAR30 format.

       Asked on 2018-12-18 by Joseph
#2 Q:   Hi, will these work with this inline fan? CVS 300A Fantech Multi-Port Centrifugal Fan for Central Ventilation. 4 Venting Points - 355 cfm
A:   Yes, these VL intake grilles or the Fantech equivalent will work fine on the intake ports of that fan.

       Asked on 2018-12-09 by Amanda
#3 Q:   What type of bulb does the florescent and led grilles use, ie. pbb 14 etc?
A:   PAR30 LED/Halogen bulbs.

       Asked on 2018-02-25 by John
#4 Q:   Is this a bathroom vent with a light in it?
A:   Yes, these are grilles with built-in lights. No fan. Meant to be used with a remote inline fan.

       Asked on 2016-01-29 by sh
#5 Q:   What is the sones number for this unit?
A:   As it has no fan, there are no sound ratings for it. Coupled with most of our inline fans, and 8-10 feet of flexible insulated duct, the sound level should be less than 1 sone.

       Asked on 2014-11-17 by SS
#6 Q:   Can you put a heat lamp in it?
A:   It is not rated for the temperature or the power requirements of a heat lamp.

       Asked on 2014-05-13 by Collin
#7 Q:   Is the led light dimmable?
A:   Yes it is.

       Asked on 2014-05-09 by a rau
#8 Q:   Can this light be used in an enclosed shower stall?
A:   Per the manufacturer, they are able to be used in a wet location, though they dont seem to be UL listed for that. The Fantech PB lights are UL approved, however.

       Asked on 2014-02-26 by Isabel
#9 Q:   Would like to connect two 4 intake grills in series to a 6 fan variable speed. Bathroom with shower stall 260cu.ft. Fan has to sidewall mount or access from Bathroom ceiling. Led lights in at least shower stall. Open for suggestions.
A:   I would select the grilles how you like (light or no light) and use the TD150 with a WC15 speed controller.

       Asked on 2013-07-04 by John
