TRUaire A302 Series Double Deflection Curved Blade Grilles

Truaire’s A300 series aluminum grilles. Individually adjustable curved blades for the ultimate in air control. These sleek diffusers are made of aluminum so they are light-weight and will not rust.

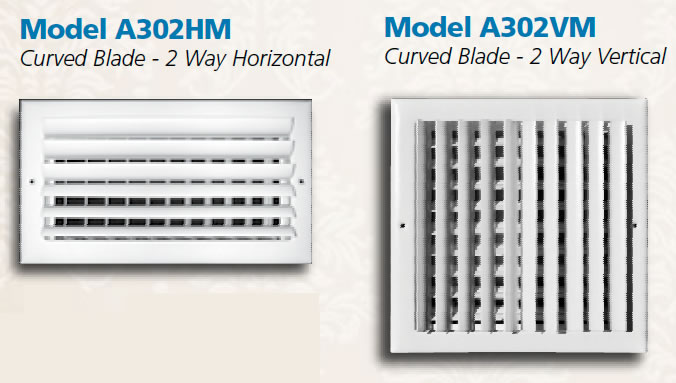

  • A302 = 2 way air flow pattern
  • Individually adjusting curved blades
  • Aesthetically designed on-piece frame
  • Multi shutter damper
  • Pristine powder-coat WHITE finish
  • Recessed screw holes

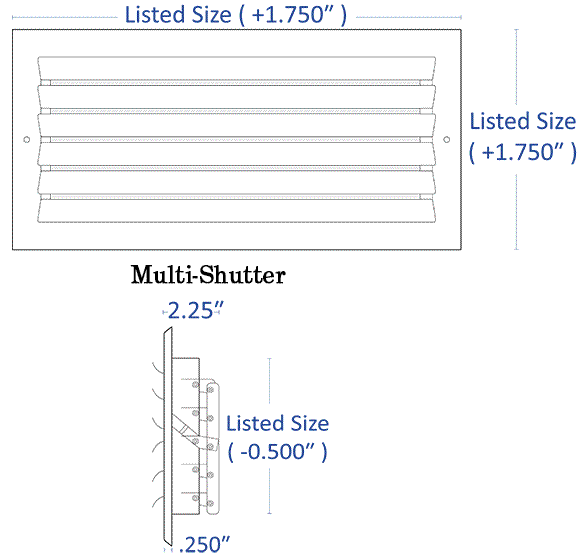

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is LARGER.

model description usually ships price QTY
A302HM 06X04 6x4 inch (WxH - 7.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $25.80
A302HM 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.30
A302HM 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $25.80
A302HM 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.90
A302HM 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $30.60
A302HM 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $27.40
A302HM 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $29.10
A302HM 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $34.10
A302HM 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $35.50
A302HM 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.30
A302HM 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $29.10
A302HM 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $35.50
A302HM 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $38.00
A302HM 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $41.80
A302HM 14X04 14x4 inch (WxH - 15.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.90
A302HM 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $30.60
A302HM 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $37.00
A302HM 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $40.60
A302HM 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $49.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



truaire A302 double deflection grilles

truaire A302 double deflection grilles
