Tjernlund AireShare Room to Room Ventilators

Make hot or cold rooms more comfortable. These room to room ventilators are installed in a wall cavity and pull air from one room to transfer to another.

The perfect companion for homes, condos, hotels & buildings with:

  • Split System or Window A/C
  • Space Heaters, Stoves & Fireplaces
  • PTAC & Ductless Heating/Cooling
  • Electric Baseboard

AireShare AS1, AS1P & AS2 Room-to-Room transfer fans can also pull cool air from floor level or warm air from ceiling level and distribute high or low.

model description usually ships price QTY
AS1 Tjernlund AireShare room-to-room ventilator. Hardwired unit. 75 cfm. 1.2 sones noise level. For 16 inch o/c wall framing. 1 Day. In-stock $171.00
AS1P Tjernlund AireShare room-to-room ventilator. Concealed plug-in unit. 75 cfm. 1.4 sones noise level. For 16 inch o/c wall framing. 1 Day. In-stock $144.00
AS2 Tjernlund AireShare double blower room-to-room ventilator. Hardwired unit. 110 cfm. 1.5 sones noise level. 1 Day. In-stock $259.00
SWS Tjernlund SWS wireless switch. For manual activation of booster or AireShare transfter fans. Includes wireless switch and receiver. 1 Day. In-stock $129.00
SWT Tjernlund SWT wireless thermostat. For automatic activation of booster or AireShare transfter fans (heat mode only). Includes wireless thermostat and receiver. 1 Day. In-stock $139.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

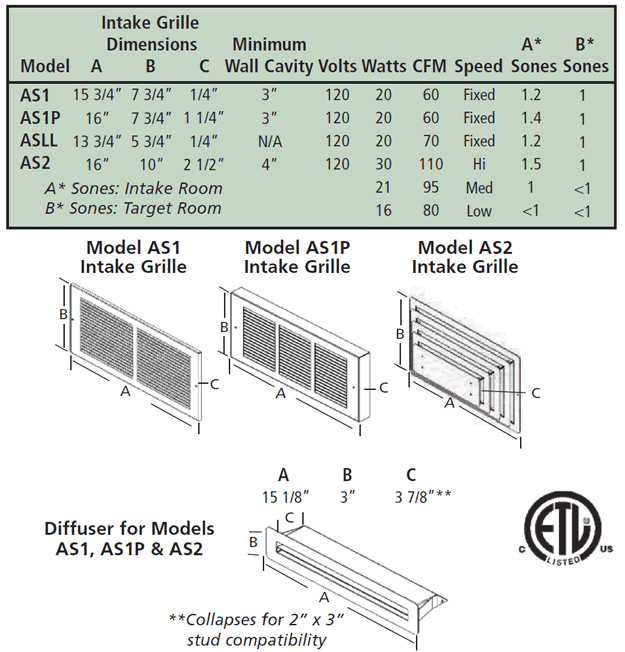

Tjernlund AireShare Ventilator Specs

Tjernlund SWS controls

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Does the AS2 really require 4 depth into the wall or can you use standard stud depth of 3.5?
A:   Per Tjernlund, yes. The double blower unit requires a thicker wall.

       Asked on 2019-04-29 by Eric
#2 Q:   Can I use the thermostat for cooling the receiving room purpose? IN the manual, it states for heating purpose, buy doesnt state ONLY.
A:   The SWT is a heating only thermostat. It does not have a cooling model selection.

       Asked on 2018-11-18 by Cheng
#3 Q:   Is there a different option for the intake vent cover so that it is flush or at least flater to wall than one appears to be that is standard?
A:   Unfortunately no. The unit mounting frame sits on top of the drywall so the grille has to cover it and any attachment screws.

       Asked on 2017-07-12 by Steve
#4 Q:   How is the fan speed changed on the AS2? Does the wireless thermostat adjust fan speed on the AS2?
A:   The thermostat will only turn it on and off...to vary the speed one installs a capacitor of varying microfarads when wiring the unit.

       Asked on 2015-08-01 by Rich
#5 Q:   Is a thermostat or on off switch available ?
A:   Both are available, you may use a wireless switch for manual operation or a thermostat for automatic control.

       Asked on 2013-11-06 by Nat
