Suncourt

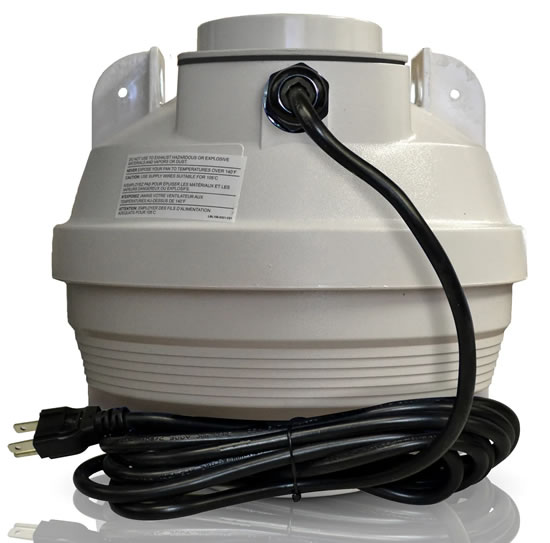

Suncourt Centrax Inline Centrifugal Fans

Suncourt Centrifugal Fans can be used for a variety of Ventilation purposes such as bathroom ventilation, crawlspace ventilation and general exhaust. They are also used for Inline Boosting applications such as pushing cold air to upper floors in the summer time, moving air long distances, pushing warm air down from high ceilings, and any other application requiring boosted airflow.

  • - High Volume & Pressure
  • - Installs In Any Position
  • - Ball Bearings Are Permanently Sealed & Lubricated
  • - Backward Inclined Blades
  • - Vibration Absorbing Material
  • - UV Protected/Flame Retardant Thermal Plastic Resin
  • - 140° F (60° C) Maximum Air Stream Temperature
  • - 5 Year Limited Warranty
  •

    model description usually ships price QTY

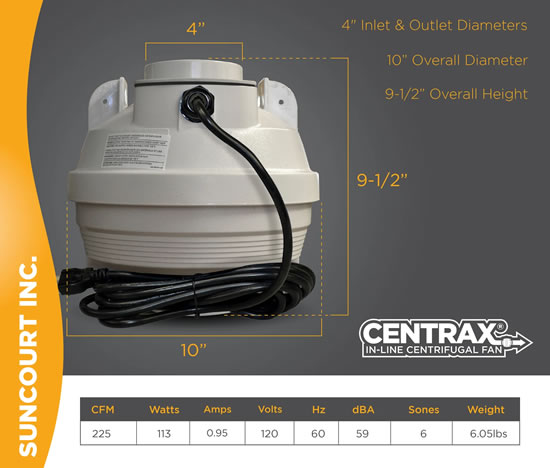

    TF104 Suncourt Centrax centrifugal fan. 4 inch fan. 200 nominal CFM. 110-volt motor. ETL approved. 1 Day. In-stock $114.00

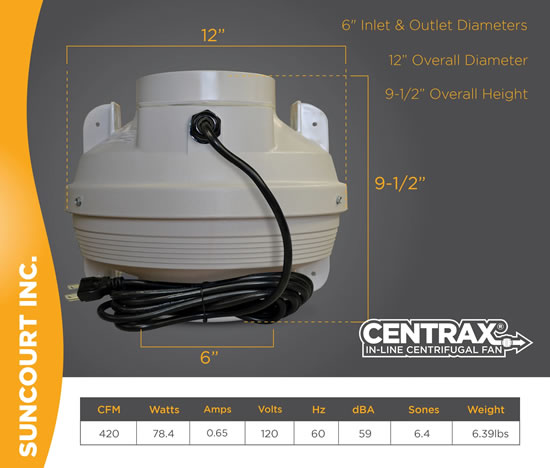

    TF106 Suncourt Centrax centrifugal fan. 6 inch fan. 409 nominal CFM. 110-volt motor. ETL approved. 1 Day. In-stock $144.00
    add to basket

    real-time shipping quotes are available before checkout on your shopping cart page

    suncourt fan

    Do you have questions about the products on this page?

    Click on the ? image on the left or this link to ask us your questions!
    #1 Q:   How do you mount it in an attic? Is there a separate mounting bracket?
    A:   Yes, it comes with mounting brackets. More install info: http://www.hvacquick.com/catalog_files/Suncourt_Centrax_IOM.pdf

           Asked on 2017-08-24 by Greg
    #2 Q:   The upper end can easily connect to a 4 pipe. Can the lower end connect to a 4 pipe?
    A:   The TF104 has the same size duct connection flanges on both sides of the fan.

           Asked on 2015-05-10 by youlin
