Tjernlund Crawlspace Ventilators
UnderAire crawlspace ventilators are used to help reduce excess moisture that causes mold, mildew and wood rot. Help vent radon, off-gassing, and odors that might otherwise migrate into living areas. 1 fan model will ventilate up to 1650 cubic feet. For larger spaces use multiple units or multiple fan model.

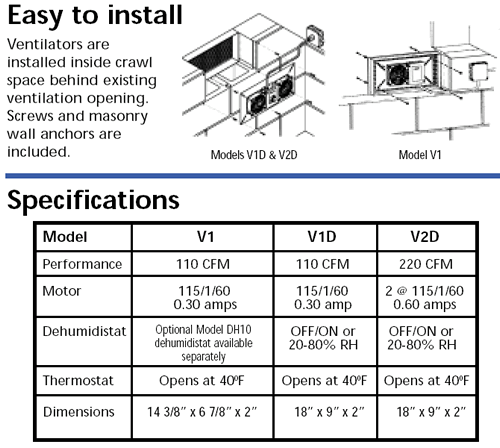

1 and 2 fan models available. 1 fan model rated at 110 cfm and 2 fan model rated at 220 cfm. Complete with 6 foot cord and dehumidistat. The dehumidistat is adjustable from 20 to 80 percent RH. Thermostat shuts fan off at low temperatures. ETL Approved.
|Do you have questions about the products on this page?
Click on the ? image on the left or this link to ask us your questions!
|#1||Q: What should the thermostats be set at?
A: The thermostat is set to 40 degrees and cannot be adjusted. The humidistat can be adjusted, and where will depend on how much moisture is present. Generally these are set to 30-40 humidity, unless you want it to run more, then you would set it very low.
Asked on 2016-12-08 by Bam
|#2||Q: I was under the impression that these take outside air and blow it into the crawl space (Pressurizing the space) and therefore force the air out the other vents. Is this true or does it suck air out?
A: These are installed on the inside of the crawlspace and pull air out of the crawlspace.
Asked on 2016-08-11 by Justin
|#3||Q: I have 1500 Sq ft crawl space. What type and how many fans would I need?
A: Per Tjernlund: 1 fan model will ventilate up to 1650 cubic feet. So if your crawlspace is 1 foot tall, that would be 1500 cubic feet so 1 V1D fan minimum. For 2 foot tall crawlspace, that would be 2x1500=3000 cubic feet, so 2 V1D fans minimum. If you have a lot of moisture, you will need more than the minimum.
Asked on 2016-05-09 by CM
|#4||Q: Is there a video showing how to mount these in crawl space?
A: No video available, but here are the installation instructions: http://www.hvacquick.com/catalog_files/Tjernlund_UnderAire_Crawl_Space_Ventilator_IOM.pdf
Asked on 2015-09-03 by Mike
|#5||Q: what are the sones?
A: No information is provided by Tjernlund, they arent too bad, more of a higher pitch sound, but they do recommend to place it away from any windows.
Asked on 2014-11-09 by Martin
|#6||Q: What is the warranty on these fans.
A: These carry a 1 year factory warranty.
Asked on 2013-07-11 by Renee
|#7||Q: Is there an off switch?
A: There is an off switch, you simply turn it the switch all the way to the left. Alternatively, you could switch the 110V outlet the unit is plugged into so you neednt go under the house.
Asked on 2013-04-05 by Dan
|#8||Q: Is the 2 fan model louder than the 1 fan one?
A: Not really. The fans are the same frequency and the same fan model.
Asked on 2013-04-05 by Susan
|#9||Q: Can I mount the V1D on the outside pushing air into the crawlspace?
A: Theoretically yes, but the unit is not designed with that in mind. Its designed to sit inside the crawlspace where its protected from rain, etc. Also, you probably do not want to blow air into the crawlspace (pressurize the crawlspace). Its better to draw air out instead.
Asked on 2013-04-05 by Ed
The PCV1 crawlspace fan is designed to be mounted behind any new or existing crawlspace vent. Humidistat controlled. 1 unit will VENTILATE UP TO 1650 cubic feet of crawlspace.
