Lifebreath Indoor Air Systems

Lifebreath AH Series Hydronic Air Handlers

The Lifebreath AH series are hydronic air handlers for residential and light commercial applications.

Benefits of the AH series:
 Significant energy savings through ECM motor available on all models
• Heating Capacity: 25,000 to 110,000 BTU.
• Add on air conditioning capacity: 2 to 4 tons.
• Compatible with a hot water heater or boiler.
• Simple, straightforward installation. Saves time.
• May qualify for energy efficiency programs or rebates in your area.

model description usually ships price QTY
AH-U-S4A-24-P16 Lifebreath air handler. Part 94-AH-U-S4A-24-P16. Upflow configuration. Small 4 row coil. 2.0 tons. Standard 120V/60Hz motor. 1-2 Weeks $1099.00
AH-U-S4A-24-E16 Lifebreath air handler. Part 94-AH-U-S4A-24-E16. Upflow configuration. Small 4 row coil. 2.0 tons. ECM 120V/60Hz motor. 1-2 Weeks $1349.00
AH-U-S2A-30-E16 Lifebreath air handler. Part 94-AH-U-S2A-30-E16. Upflow configuration. Small 2 row coil. 2.5 tons. ECM 120V/60Hz motor. 1-2 Weeks $1349.00
AH-U-L2A-36-E16 Lifebreath air handler. Part 94-AH-U-L2A-36-E16. Upflow configuration. Large 2 row coil. 3.0 tons. ECM 120V/60Hz motor. 1-2 Weeks $1249.00
AH-U-L4A-36-P16 Lifebreath air handler. Part 94-AH-U-L4A-36-P16. Upflow configuration. Large 4 row coil. 3.0 tons. Standard 120V/60Hz motor. 1-2 Weeks $1169.00
AH-U-L4A-36-E16 Lifebreath air handler. Part 94-AH-U-L4A-36-E16. Upflow configuration. Large 4 row coil. 3.0 tons. ECM 120V/60Hz motor. 1-2 Weeks $1399.00
AH-U-L2B-48-E16 Lifebreath air handler. Part 94-AH-U-L2B-48-E16. Upflow configuration. Large 2 row coil. 4.0 tons. ECM 120V/60Hz motor. 1-2 Weeks $1299.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

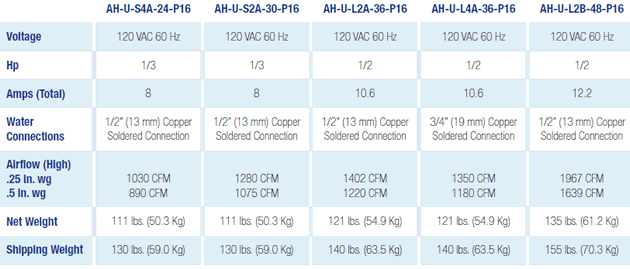

lifebreath AH hydronic air handler specs

lifebreath AH hydronic air handler

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   is the hot water coil in the ahdl4a36-p16 nsf61 compliant for no lead for potable water systems?
A:   It is rated for Potable Water Standards through CSA, but we could not find specific nomenclature stating the NSF listing.

       Asked on 2014-02-15 by dan g

Related Products

Lifebreath CAF Series Clean Air Furnace

Combines an air handler with a built-in heat recovery ventilator. All Lifebreath Clean Air Furnaces are available with an optional ECM motor.
