HVACQuick IFB Series Inline Filter Boxes

HVACQuick's IFB series of inline filter boxes are a straightforward solution for any application requiring inline filtration. Available in sizes to fit 4, 5, 6, 8, 10, 12 or 14 inch ducts, every box is constructed from 22-gauge galvanized steel. Lids attach securely with latches, and open easily for filter replacements. MERV-6 polypropylene filter media is shaped for maximum airflow.

Replacement filter media is available. Large orders are welcome, and may benefit from additional discounts. Call us for more information or for resale opportunities.

model description usually ships 1-4 units 5+ units QTY
IFB-4 HVACQuick IFB series inline filter box. For 4 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $68.90 $63.00
IFB-5 HVACQuick IFB series inline filter box. For 5 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $82.60 $76.00
IFB-6 HVACQuick IFB series inline filter box. For 6 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $91.00 $84.00
IFB-8 HVACQuick IFB series inline filter box. For 8 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $99.00 $92.00
IFB-10 HVACQuick IFB series inline filter box. For 10 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $139.00 $128.00
IFB-12 HVACQuick IFB series inline filter box. For 12 inch ducts. Includes lid and MERV-6 filter media. 1 Day. In-stock $149.90 $141.00
IFB-14 HVACQuick IFB series inline filter box. For 14 inch ducts. Includes lid and MERV-6 filter media. 1-2 Weeks $174.00 $159.00
IFMEDIA-4 HVACQuick replacement MERV-6 filter media for 4 inch IFB series inline filter boxes. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $23.25 $22.00
IFMEDIA-5 HVACQuick replacement MERV-6 filter media for 5 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $24.25 $23.00
IFMEDIA-6 HVACQuick replacement MERV-6 filter media for 6 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $25.50 $24.00
IFMEDIA-8 HVACQuick replacement MERV-6 filter media for 8 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $28.25 $27.00
IFMEDIA-10 HVACQuick replacement MERV-6 filter media for 10 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $31.75 $30.00
IFMEDIA-12 HVACQuick replacement MERV-6 filter media for 12 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $34.50 $33.00
IFMEDIA-14 HVACQuick replacement MERV-6 filter media for 14 inch IFB series inline filter boxes. 1 filter. Sized and cut to fit the curved filter. Pack of four filters. 1 Day. In Stock $39.75 $38.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

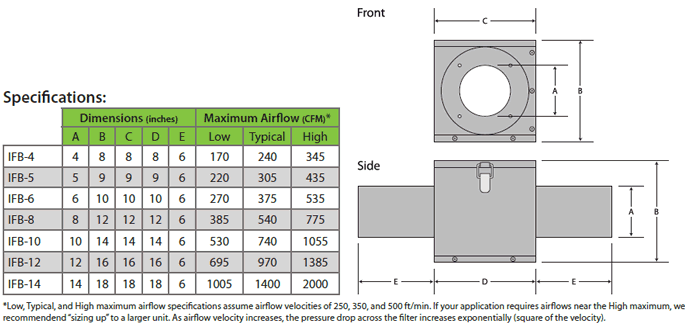

Inline Filter Box Dimensions

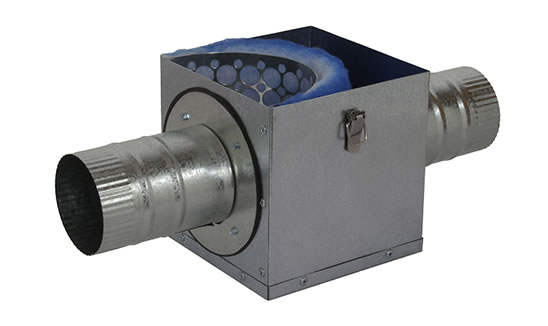

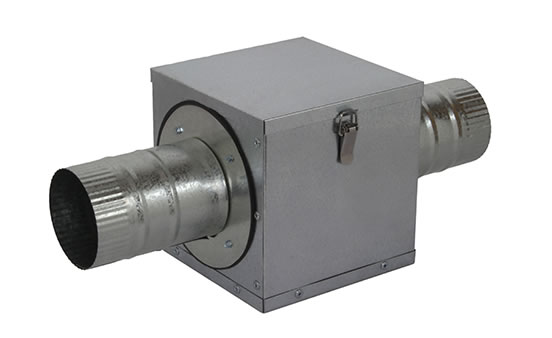

Inline Filter Box

Inline Filter Box Filter

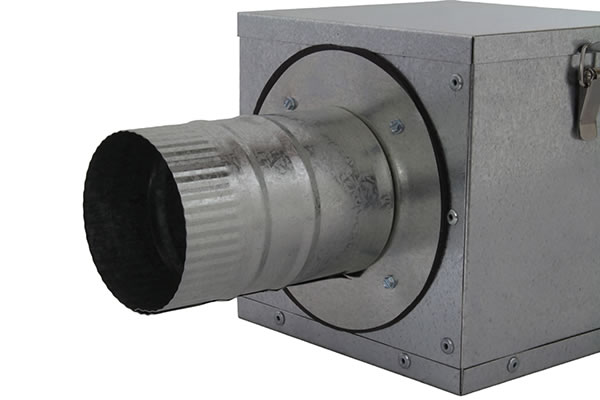

Inline Filter Box Flange


Links:

Filter Box Cut Sheet (PDF file)

Filter Box Assembly Instructions (PDF file)

IFB Filter Box Video (click for youtube.com video):




Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What is the part number/link for the replacement media?
A:   Same page, just towards the bottom of the list. Part number is IFMEDIA-4 where the 4 designates the media for the 4 inch box, etc.

       Asked on 2017-04-13 by Sean
#2 Q:   Will the filter material handle temperatures to 100 degrees F (40C)?
A:   Yes, 100F is fine.

       Asked on 2017-01-10 by alec
#3 Q:   Can this unit be used in a house as an additional lint filter for an electric clothes dryer?
A:   No. You want a lint trap such as the Fantech DBLT 4W: http://www.hvacquick.com/products/residential/Dryer-boosting/dryer-booster-fans/fantech-dryer-boosters

       Asked on 2016-01-17 by Sean
